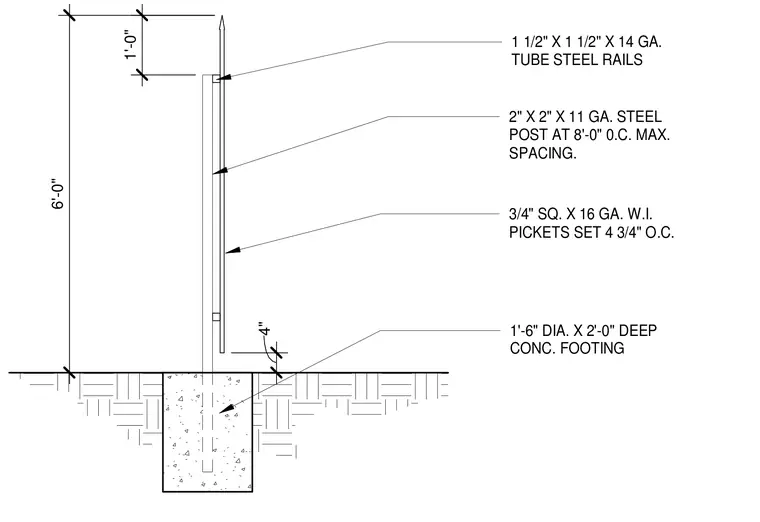

A 2-inch by 2-inch by 11-gauge steel post anchors the assembly at a maximum spacing of 8 feet on center, extending into a 1-foot-6-inch diameter by 2-foot deep concrete footing. Horizontal framing consists of 1-1/2-inch by 1-1/2-inch by 14-gauge tube steel rails. Vertical pickets comprise 3/4-inch square by 16-gauge wrought iron members set at 4-3/4 inches on center.
1 1/2" X 1 1/2" X 14 GA. TUBE STEEL RAILS 2" X 2" X 11 GA. STEEL POST AT 8'-0" 0.C. MAX. SPACING. 3/4" SQ. X 16 GA. W.I. PICKETS SET 4 3/4" O.C. 1'-6" DIA. X 2'-0" DEEP CONC. FOOTING 4" 6'-0" 1'-0"
