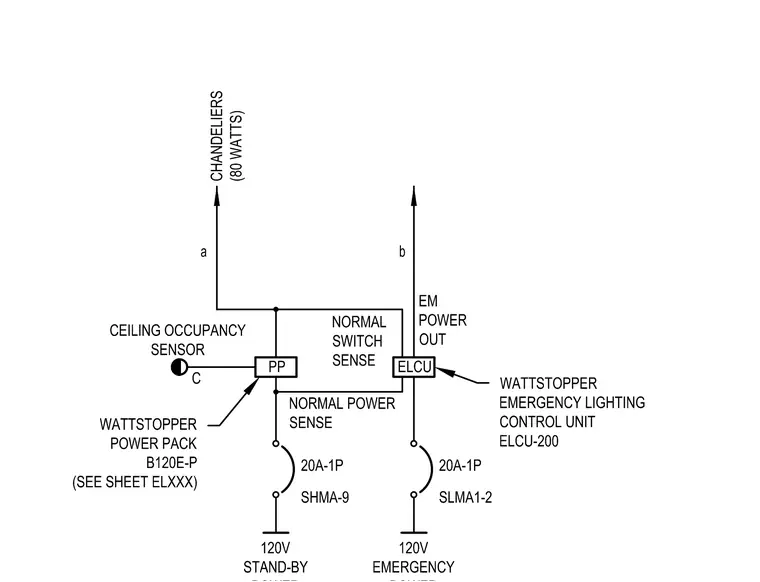

A ceiling occupancy sensor connects to a Wattstopper power pack B120E-P, which receives a 120V stand-by power feed through a 20-amp single-pole circuit. An emergency lighting control unit ELCU-200 connects to a 120V emergency power feed through a 20-amp single-pole circuit and provides emergency power output. The power pack supplies power to chandeliers rated at 80 watts.
