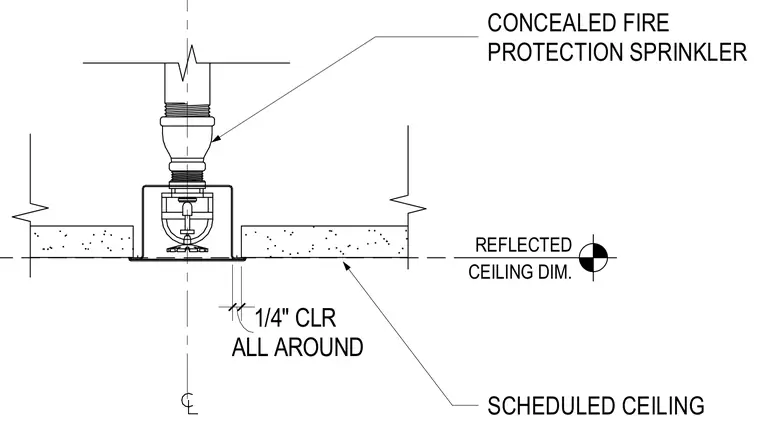

A concealed fire protection sprinkler head is recessed into a scheduled gypsum ceiling assembly with a one-quarter inch clearance provided all around the cover plate. The supply drop pipe aligns with the center of the sprinkler escutcheon, positioned relative to the reflected ceiling dimension.
SCHEDULED CEILING CONCEALED FIRE PROTECTION SPRINKLER ALL AROUND 1/4" CLR REFLECTED CEILING DIM.
