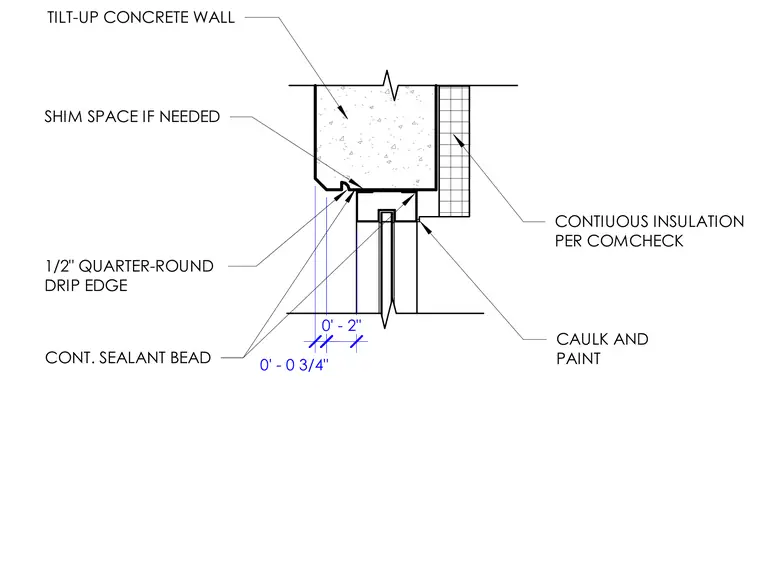

A storefront window head frames into a tilt-up concrete wall with an optional shim space and continuous sealant bead. The concrete wall includes a one-half inch quarter-round drip edge and receives continuous insulation sized per Comcheck. The joint is finished with exterior caulk and paint.
SHIM SPACE IF NEEDED TILT-UP CONCRETE WALL CONT. SEALANT BEAD CAULK AND PAINT CONTIUOUS INSULATION PER COMCHECK 1/2" QUARTER-ROUND DRIP EDGE 0' - 0 3/4" 0' - 2"
