Architectural · A-XYM5N

Canopy Roof and Wall Connection Detail

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Beams Walls Roofs Canopies Floors / Slabs Decks Bracing Waterproofing / Flashing Insulation Drainage Connections / Plates

Connections

HSS Connection Welded Connection

About this detail

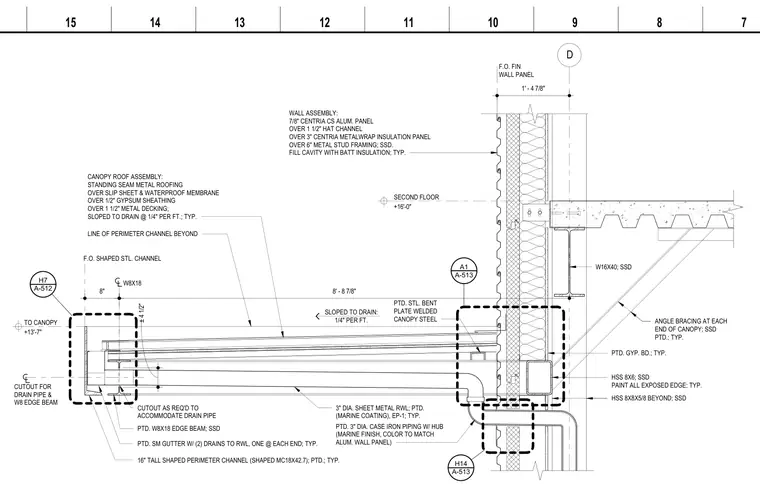

The assembly features a painted W16x40 interior beam supporting a canopy roof built with standing seam metal roofing over a slip sheet, waterproof membrane, one-half-inch gypsum sheathing, and one-and-a-half-inch metal decking. The perimeter edge is framed with a painted W8x18 edge beam and a sixteen-inch-tall shaped perimeter channel made from an MC18x42.7 shape. A painted sheet metal gutter with two drains connects to a three-inch-diameter sheet metal roof leader and a three-inch-diameter cast iron pipe with a hub finished to match the aluminum wall panels. The exterior wall consists of seven-eighths-inch Centria CS aluminum panels over one-and-a-half-inch hat channels, three-inch Centria MetalWrap insulation panels, and six-inch metal stud framing with batt insulation. Painted steel bent plates weld the canopy steel to the structure, and angle bracing is placed at each end of the canopy. An HSS 8x6 structural steel tube and an HSS 8x8x5/8 hollow structural section are located nearby, with all exposed edges painted.
