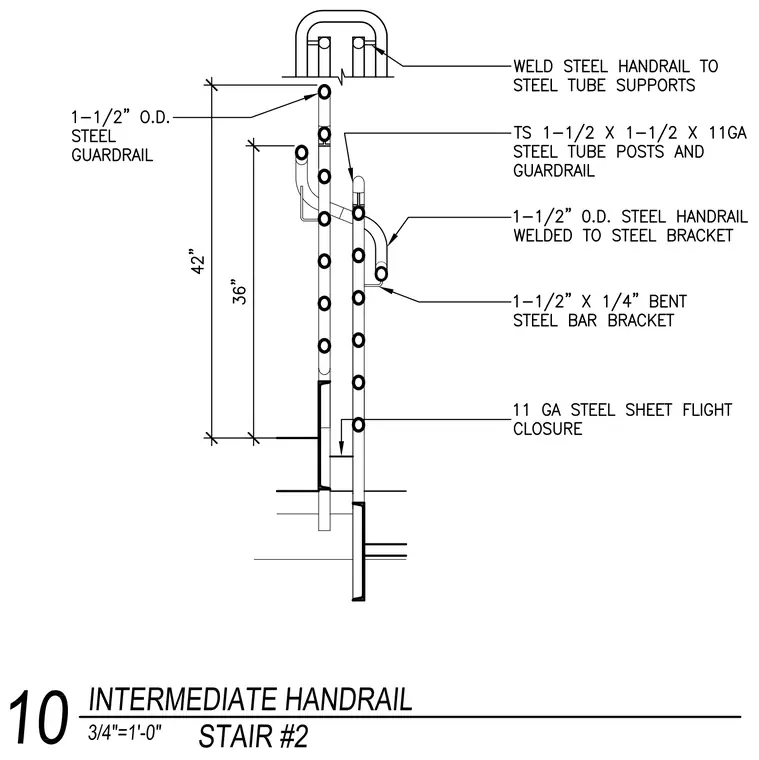

The assembly features one-and-a-half-inch outer diameter steel guardrail tubes mounted on one-and-a-half by one-and-a-half-inch by eleven-gauge hollow structural section steel tube posts. A one-and-a-half-inch outer diameter steel handrail is welded to a bent steel bar bracket measuring one-and-a-half by one-quarter inch. An eleven-gauge steel sheet flight closure provides containment along the stair run. The steel handrail is welded directly to the steel tube supports at the upper transition.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
