A resilient transition strip is installed at a floor transition and door location between two adjacent resilient flooring assemblies. Floor transitions with a zero to one-half-inch height differential require a transition strip with a one-to-two slope. Where the height differential is greater than one-half inch, the transition strip slope must be one-to-twelve.

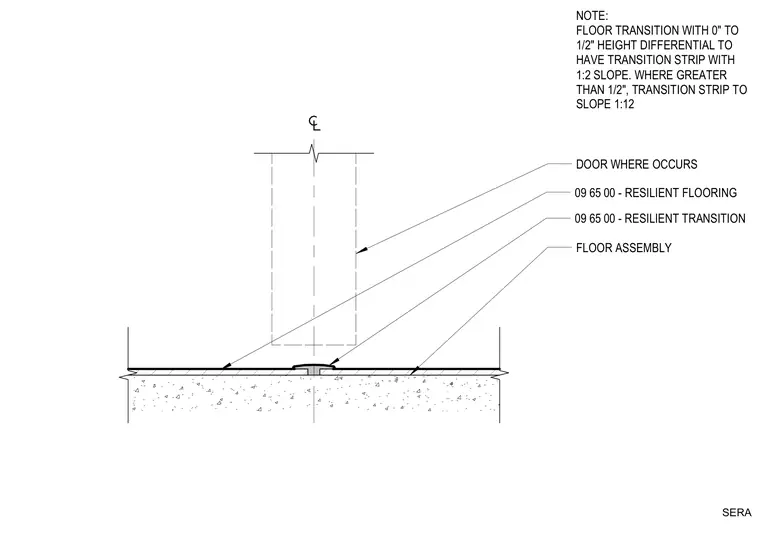

NOTE: FLOOR TRANSITION WITH 0" TO 1/2" HEIGHT DIFFERENTIAL TO HAVE TRANSITION STRIP WITH 1:2 SLOPE. WHERE GREATER THAN 1/2", TRANSITION STRIP TO SLOPE 1:12 DOOR WHERE OCCURS 09 65 00 - RESILIENT FLOORING 09 65 00 - RESILIENT TRANSITION SERA FLOOR ASSEMBLY
