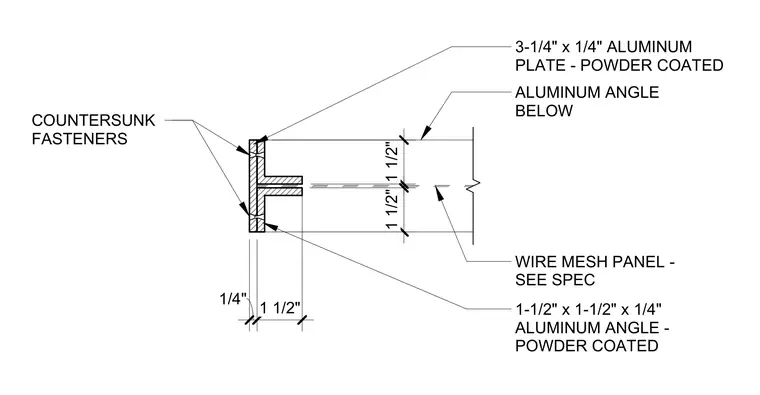

A powder-coated three-by-one-quarter-inch aluminum plate attaches to a powder-coated one-and-a-half-inch by one-and-a-half-inch by one-quarter-inch aluminum angle using countersunk fasteners. The wire mesh panel is specified separately and secured between the aluminum angles.
1-1/2" x 1-1/2" x 1/4" ALUMINUM ANGLE - POWDER COATED WIRE MESH PANEL - SEE SPEC COUNTERSUNK FASTENERS ALUMINUM ANGLE BELOW 3-1/4" x 1/4" ALUMINUM PLATE - POWDER COATED 1/4" 1 1/2" 1 1/2" 1 1/2"
