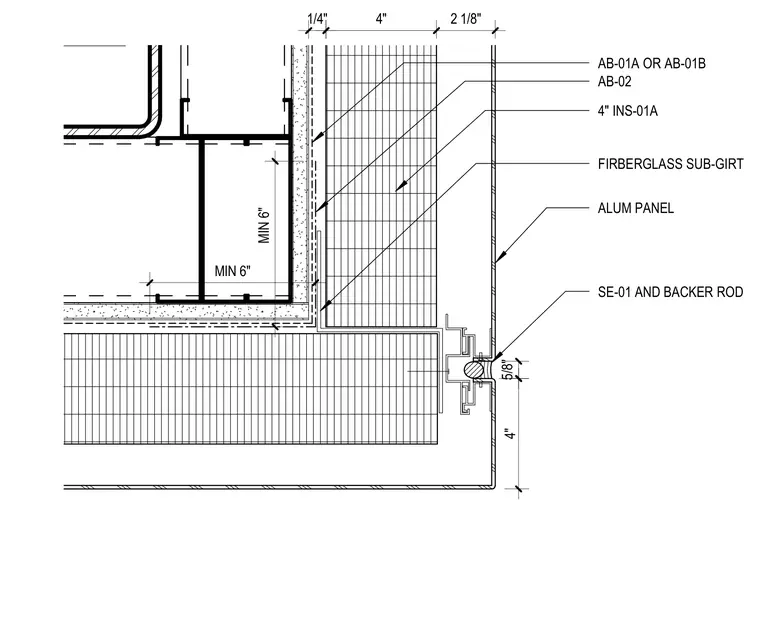

Aluminum panels are supported by fiberglass sub-girts mounted over insulation layers. Panel joints are finished with sealant and backer rods. The corner assembly integrates moisture barriers and sub-framing to maintain a continuous thermal envelope.
4" 5/8" ALUM PANEL AB-01A OR AB-01B AB-02 MIN 6" MIN 6" SE-01 AND BACKER ROD 1/4" 4" INS-01A FIRBERGLASS SUB-GIRT 2 1/8" 4"
