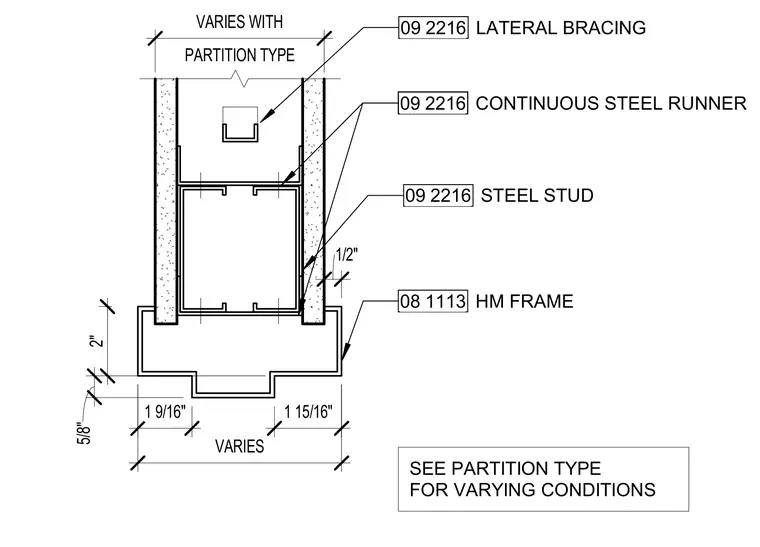

This interior partition head detail shows a hollow metal frame intersecting with steel stud framing. The assembly uses continuous steel runners and steel studs topped with lateral bracing inside the partition cavity. Gypsum board of varying thickness finishes the partition walls on both sides of the frame profile.
1 15/16" 1 9/16" VARIES 1/2" PARTITION TYPE VARIES WITH 2" 5/8" SEE PARTITION TYPE FOR VARYING CONDITIONS 09 2216 LATERAL BRACING 09 2216 CONTINUOUS STEEL RUNNER 09 2216 CONTINUOUS STEEL RUNNER 08 1113 HM FRAME 09 2216 STEEL STUD
