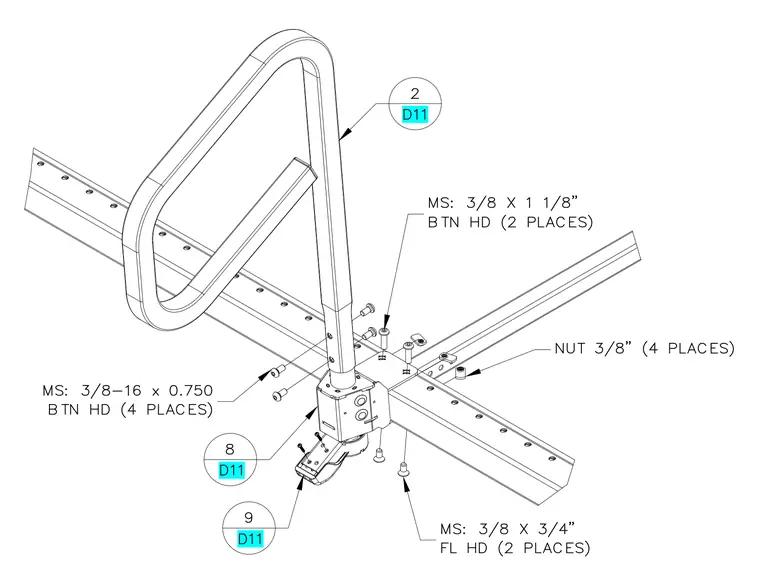

A rotating aisle rail assembly is mounted to track channels using threaded fasteners. Four 3/8-16 x 0.750 button-head machine screws secure the base connection. Two 3/8 x 1 1/8-inch button-head machine screws and four 3/8-inch nuts provide additional structural attachment. Two 3/8 x 3/4-inch flat-head machine screws anchor the base mechanism to the underlying rail tracks.
9 D11 8 D11 MS: 3/8-16 x 0.750 BTN HD (4 PLACES) MS: 3/8 X 1 1/8" BTN HD (2 PLACES) NUT 3/8" (4 PLACES) MS: 3/8 X 3/4" FL HD (2 PLACES) 2 D11 6 6 6 6 6 6 6 6 % % 0 6 0 0 6 6 6 6 o
