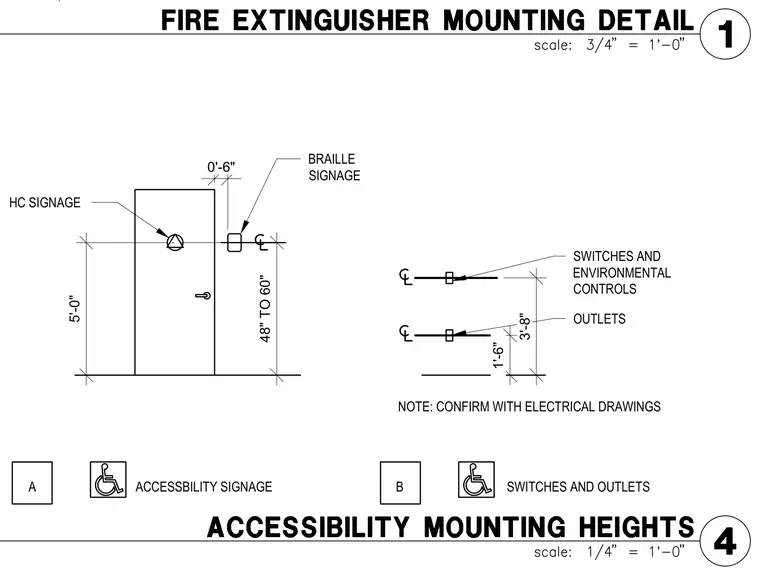

Accessibility mounting heights establish standard vertical and horizontal clearances for door signage, wall switches, environmental controls, and outlets. Braille and handicapped accessibility signage are positioned at specific heights relative to the door opening. Switches, environmental controls, and electrical outlets are mounted at designated vertical dimensions above finished floor. Electrical device placements require coordination and confirmation with electrical drawings.
0'-6" 5'-0" 48" TO 60" ACCESSBILITY SIGNAGE SWITCHES AND OUTLETS NOTE: CONFIRM WITH ELECTRICAL DRAWINGS OUTLETS SWITCHES AND ENVIRONMENTAL CONTROLS BRAILLE SIGNAGE HC SIGNAGE 1'-6" 3'-8" A B
