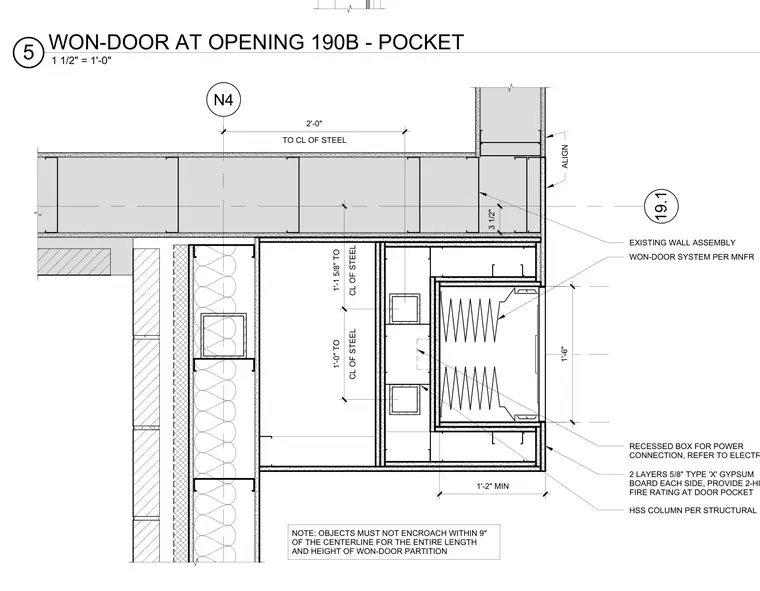

This plan detail shows a Won-door accordion partition pocket framed around a hollow structural section column and tied into an existing wall assembly. The pocket enclosure is constructed with two layers of 5/8-inch Type X gypsum board on each side to achieve a two-hour fire rating at the door pocket. A recessed box for power connections is integrated within the pocket framing, coordinated with the electrical drawings. Dimensional clearances locate the centerline of the steel at 2'-0" and 1'-1 5/8" from adjacent construction, maintaining a minimum 1'-2" pocket width. A strict clearance note mandates that objects must not encroach within 9 inches of the centerline for the entire length and height of the partition.
3 1/2" N4 ALIGN 1'-6" 1'-2" MIN WON-DOOR SYSTEM PER MNFR 2 LAYERS 5/8" TYPE 'X' GYPSUM BOARD EACH SIDE, PROVIDE 2-HR FIRE RATING AT DOOR POCKET HSS COLUMN PER STRUCTURAL RECESSED BOX FOR POWER CONNECTION, REFER TO ELECTRICAL EXISTING WALL ASSEMBLY NOTE: OBJECTS MUST NOT ENCROACH WITHIN 9" OF THE CENTERLINE FOR THE ENTIRE LENGTH AND HEIGHT OF WON-DOOR PARTITION TO CL OF STEEL 2'-0" 19.1 CL OF STEEL 1'-0" TO CL OF STEEL 1'-1 5/8" TO 1 1/2" = 1'-0" 5 WON-DOOR AT OPENING 190B - POCKET
