Architectural · A-XX6D5

Elevator Machine Room Hoistway Rail and Safety Beam Details

About this detail

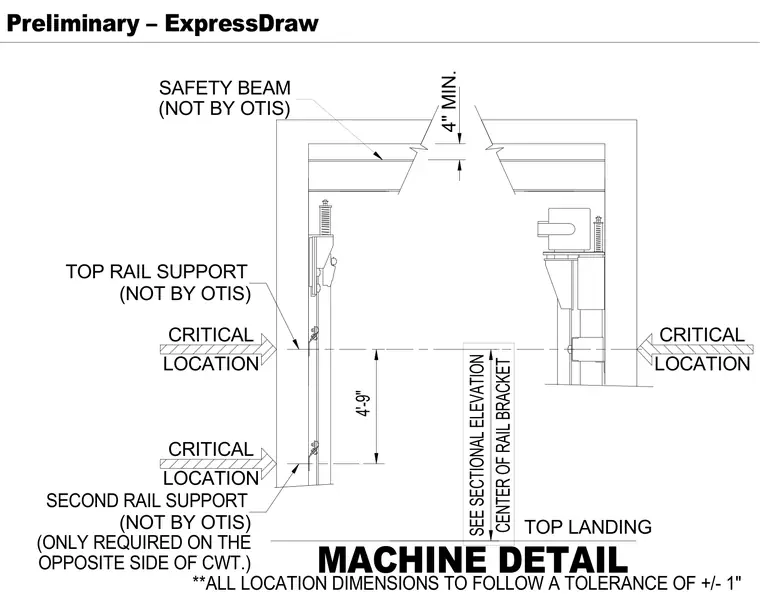

An elevator hoistway detail at the top landing shows a safety beam located with a 4-inch minimum clearance, with notes indicating it is not supplied by the elevator manufacturer. Top rail supports and second rail supports are positioned at critical locations with a dimension of 4 feet 9 inches to the center of the rail bracket, noting that the second rail support is only required on the opposite side of the counterweight. All location dimensions follow a tolerance of plus or minus 1 inch.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
