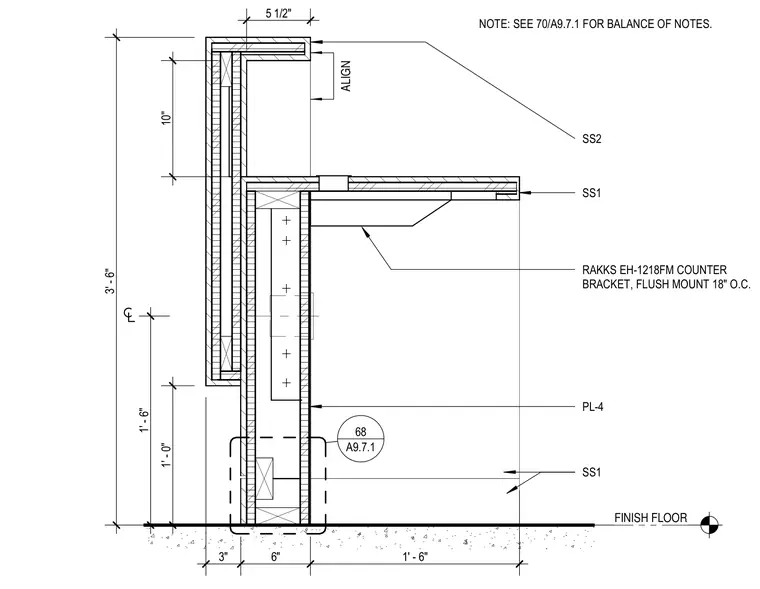

This interior architectural section details a reception desk assembly anchored to the finish floor. The transaction counter is supported by Rakks EH-1218FM flush-mount counter brackets spaced at eighteen inches on center. The overall desk height measures three feet six inches to the top of the transaction counter, with a lower counter surface and vertical panel finish designated as SS1, SS2, and PL-4. Additional balance of notes are referenced on sheet A9.7.1.
5 1/2" ALIGN FINISH FLOOR 1' - 0" 3' - 6" A9.7.1 68 SS1 PL-4 NOTE: SEE 70/A9.7.1 FOR BALANCE OF NOTES. SS2 10" SS1 3" 6" 1' - 6" RAKKS EH-1218FM COUNTER BRACKET, FLUSH MOUNT 18" O.C. 1' - 6"
