A commercial stainless steel dishtable drainboard features a fourteen-gauge stainless steel top supported by stainless steel gussets. The framework includes sixteen-gauge legs and crossrails with a one-inch by four-inch fourteen-gauge channel reinforcing beneath the top and at the undershelf. The assembly rests on stainless steel legs equipped with adjustable bullet feet. Fabrication must comply with National Sanitation Foundation standards.

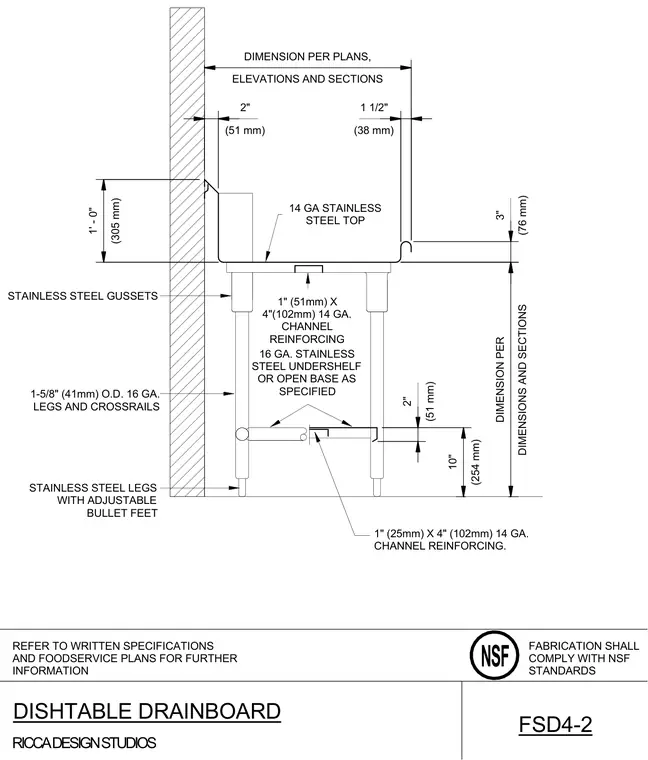

REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS NSF STAINLESS STEEL GUSSETS 1-5/8" (41mm) O.D. 16 GA. LEGS AND CROSSRAILS 1" (51mm) X 4"(102mm) 14 GA. CHANNEL REINFORCING 16 GA. STAINLESS STEEL UNDERSHELF OR OPEN BASE AS SPECIFIED 1" (25mm) X 4" (102mm) 14 GA. CHANNEL REINFORCING. 14 GA STAINLESS STEEL TOP STAINLESS STEEL LEGS WITH ADJUSTABLE BULLET FEET ELEVATIONS AND SECTIONS DIMENSION PER PLANS, (76 mm) 3" DIMENSIONS AND SECTIONS DIMENSION PER (38 mm) 1 1/2" (51 mm) 2" (51 mm) 2" (254 mm) 10" (305 mm) 1' - 0" DISHTABLE DRAINBOARD FSD4-2
