Architectural · A-XWT2S

Steel Guardrail and Stair Railing Detail at Floor Edge

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Columns Stairs Railings / Guards Ceilings Floors / Slabs

Connections

Welded Connection

About this detail

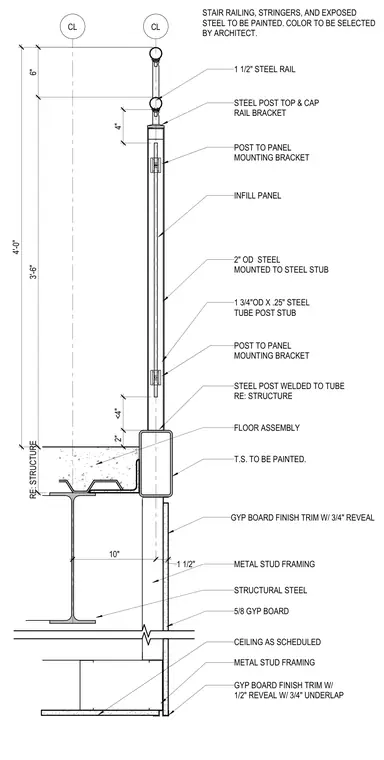

A steel guardrail and stair railing assembly mounts at the edge of a floor assembly. A 1 and 3/4 inch outer diameter by 0.25 inch thick steel tube post stub is welded to a structural steel tube section at the floor edge, with a 2 inch outer diameter steel tube mounted to the stub. Post-to-panel mounting brackets hold an infill panel, topped with a steel post, cap rail bracket, and a 1 and 1/2 inch steel rail. Below the floor level, structural steel framing supports the floor slab, while metal stud framing and 5/8 inch gypsum board create the ceiling finish below with custom reveals.
