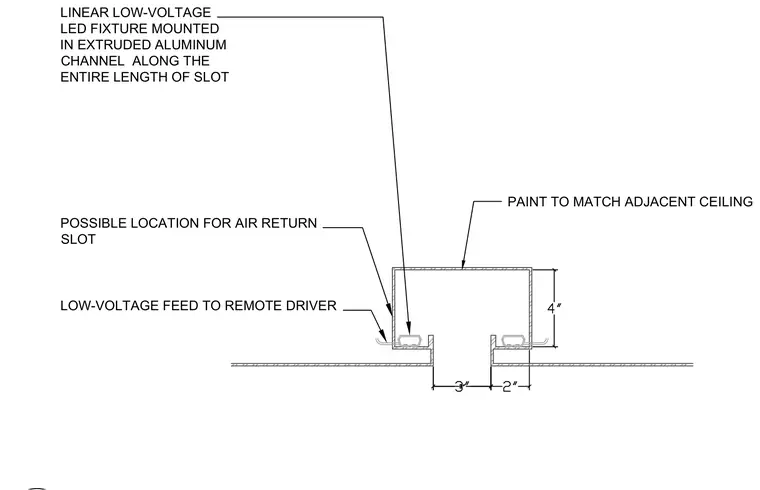

A linear low-voltage LED fixture is mounted inside an extruded aluminum channel that runs the entire length of the ceiling slot. The slot features a four-inch depth and a three-inch clear opening width, with two-inch side flanges. A low-voltage feed connects to a remote driver, and a designated space provides a possible location for an air return slot. All visible surfaces are painted to match the adjacent ceiling.
LOW-VOLTAGE FEED TO REMOTE DRIVER POSSIBLE LOCATION FOR AIR RETURN SLOT LINEAR LOW-VOLTAGE LED FIXTURE MOUNTED IN EXTRUDED ALUMINUM CHANNEL ALONG THE ENTIRE LENGTH OF SLOT PAINT TO MATCH ADJACENT CEILING
