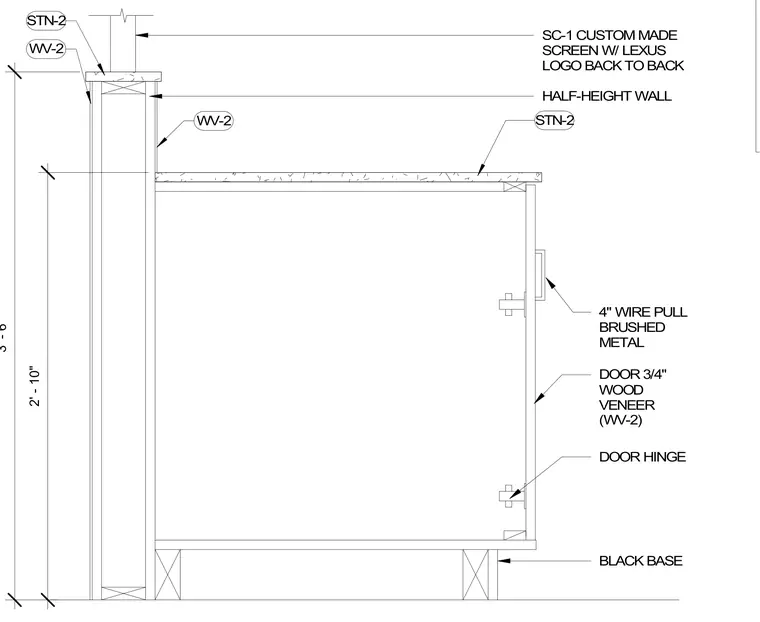

This architectural detail shows a service writer counter assembly featuring a half-height wall with wood veneer finish (WV-2) and a stone countertop (STN-2). The base incorporates a black finish and a three-quarter-inch wood veneer cabinet door equipped with door hinges and a four-inch brushed metal wire pull. A custom screen (SC-1) with a Lexus logo extends upward back-to-back from the half-height wall.
4" WIRE PULL BRUSHED METAL HALF-HEIGHT WALL BLACK BASE DOOR HINGE DOOR 3/4" WOOD VENEER (WV-2) SC-1 CUSTOM MADE SCREEN W/ LEXUS LOGO BACK TO BACK 2' - 10" 3' - 6" STN-2 STN-2 WV-2 WV-2
