A five-inch outer diameter standard steel galvanized pipe with a minimum one-quarter-inch wall thickness is filled with concrete and finished with a primed and painted yellow coating. The pipe embeds three feet six inches into a concrete footing sized per structural drawings. The surrounding concrete or asphalt concrete paving occurs at the base, where the concrete slopes one-half inch away from the face of the bollard.

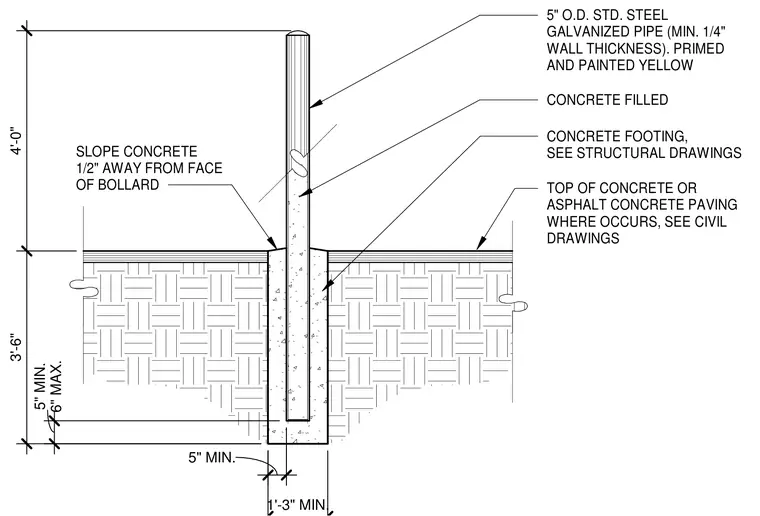

CONCRETE FILLED 5" O.D. STD. STEEL GALVANIZED PIPE (MIN. 1/4" WALL THICKNESS). PRIMED AND PAINTED YELLOW CONCRETE FOOTING, SEE STRUCTURAL DRAWINGS TOP OF CONCRETE OR ASPHALT CONCRETE PAVING WHERE OCCURS, SEE CIVIL DRAWINGS 5" MIN. 6" MAX. 5" MIN. 3'-6" 4'-0" 1'-3" MIN. SLOPE CONCRETE 1/2" AWAY FROM FACE OF BOLLARD
