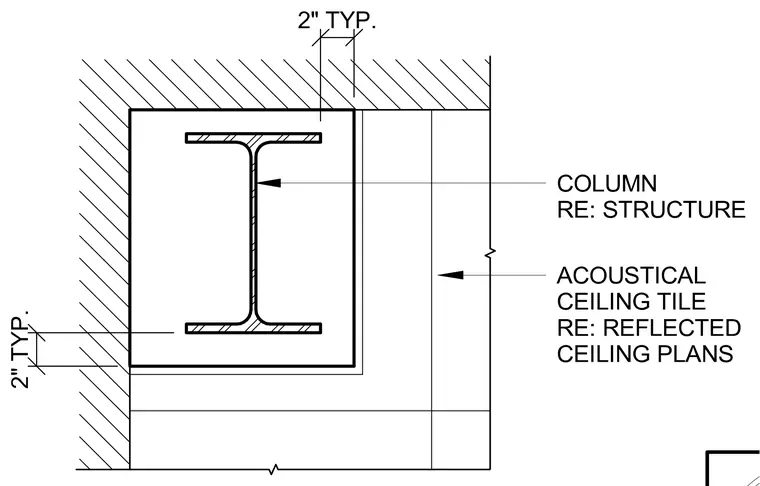

An acoustical ceiling tile system terminates around a structural steel column with a two-inch typical clearance on the exposed faces. The column is referenced to structural drawings, while the ceiling assembly refers to reflected ceiling plans for grid layout. The enclosure maintains a consistent offset from the column flanges.
