Isometric View - Single Trapeze

Materials

Steel

Elements

Bracing Connections / Plates

Connections

Bracing Connection

About this detail

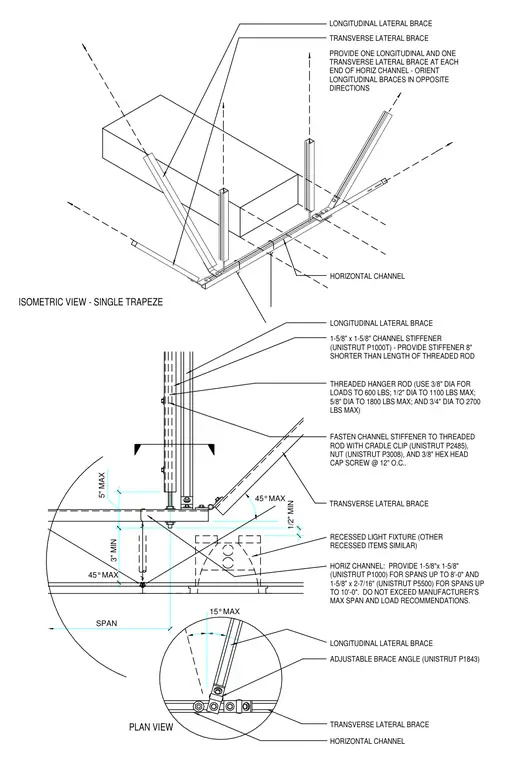

This assembly details a single trapeze support system using a horizontal channel suspended by threaded hanger rods and restrained by longitudinal and transverse lateral braces. The horizontal channel uses a 1-5/8 inch by 1-5/8 inch Unistrut P1000 for spans up to 8 feet or a 1-5/8 inch by 2-7/16 inch Unistrut P5500 for spans up to 10 feet. Threaded hanger rods range from 3/8 inch to 3/4 inch diameter based on load capacities from 600 pounds to 2700 pounds maximum. A 1-5/8 inch by 1-5/8 inch channel stiffener is fastened to the threaded rod with a cradle clip, nut, and 3/8 inch hex head cap screw at 12 inches on center, provided 8 inches shorter than the length of the threaded rod. Adjustable brace angles provide longitudinal and transverse lateral bracing at each end of the horizontal channel, oriented in opposite directions with maximum and minimum angular constraints shown.
