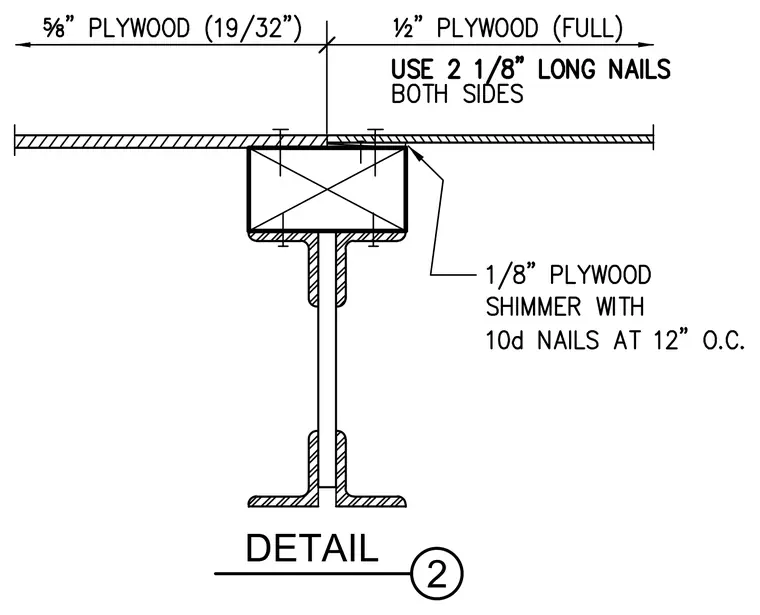

A five-eighths inch plywood panel meets a one-half inch full plywood panel over a wood nailer resting on a steel beam top flange. The sheathing is fastened with two and one-eighth inch long nails on both sides. A one-eighth inch plywood shim is installed with ten-penny nails spaced at twelve inches on center.
