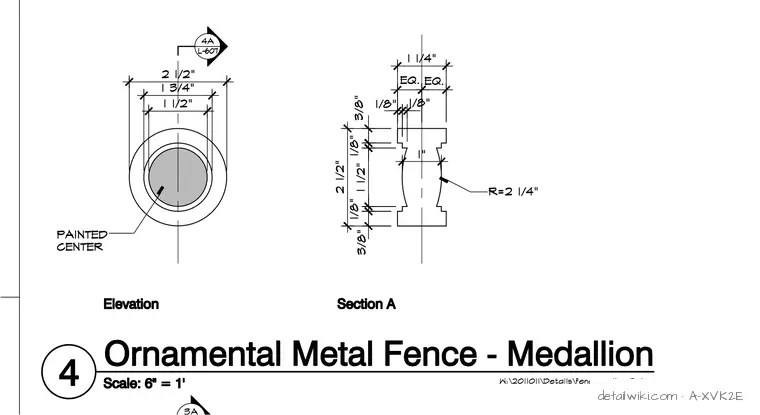

An ornamental metal fence medallion assembly features a circular elevation with a painted center measuring 1 and 1/2 inches in diameter within concentric rings spanning 1 and 3/4 inches and 2 and 1/2 inches. The adjoining cross-section details a profiled collar element measuring 2 and 1/2 inches in total height, with a 1 and 1/4 inch overall width and a radius of 2 and 1/4 inches along its curved profile. Vertical dimensions segment the profile into 3/8 inch, 1/8 inch, 1 and 1/2 inch, 1/8 inch, and 3/8 inch increments. Horizontal dimensions establish symmetry with equal spacing on either side of the vertical centerline.
