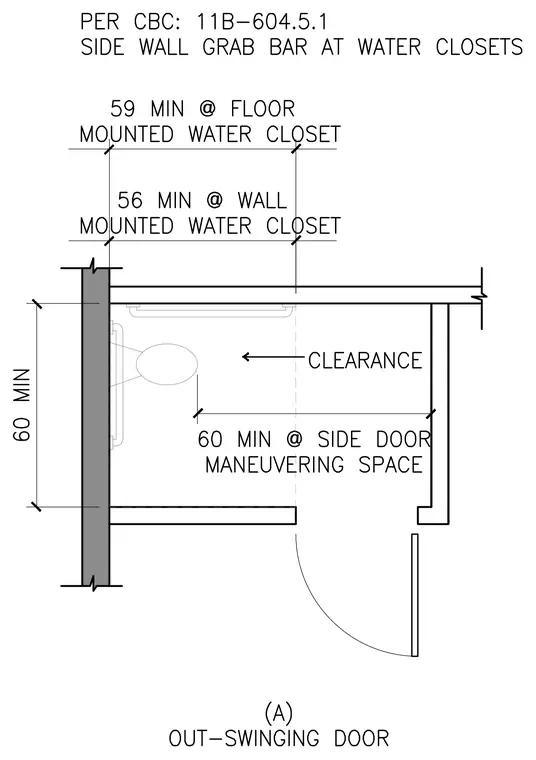

An accessible water closet stall layout specifies critical dimensions for side wall grab bars and spatial clearances per California Building Code standards. A fifty-nine-inch minimum dimension applies to floor-mounted water closets, while a fifty-six-inch minimum applies to wall-mounted water closets measured from the rear wall to the front of the grab bar. A sixty-inch minimum dimension governs the side door maneuvering space and wall clearance requirements. The layout accommodates an out-swinging door and provides required side wall clearance zones adjacent to the plumbing fixture.
