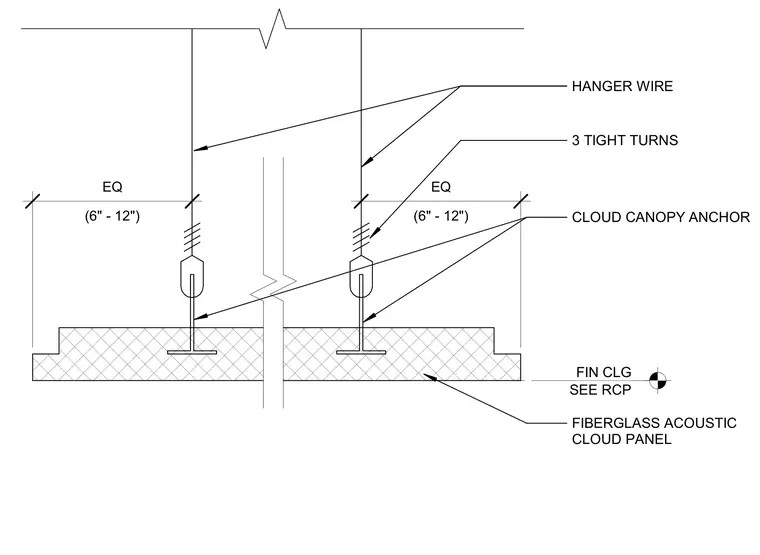

A fiberglass acoustic cloud panel is suspended from the overhead structure by hanger wires secured with three tight turns at the wire wraps. Cloud canopy anchors embed into the panel to receive the suspension wires. Panel spacing is set equally with edge clearances dimensioned between six to twelve inches. Finished ceiling heights are coordinated per the reflected ceiling plan.
HANGER WIRE CLOUD CANOPY ANCHOR FIBERGLASS ACOUSTIC CLOUD PANEL 3 TIGHT TURNS (6" - 12") EQ FIN CLG SEE RCP (6" - 12") EQ
