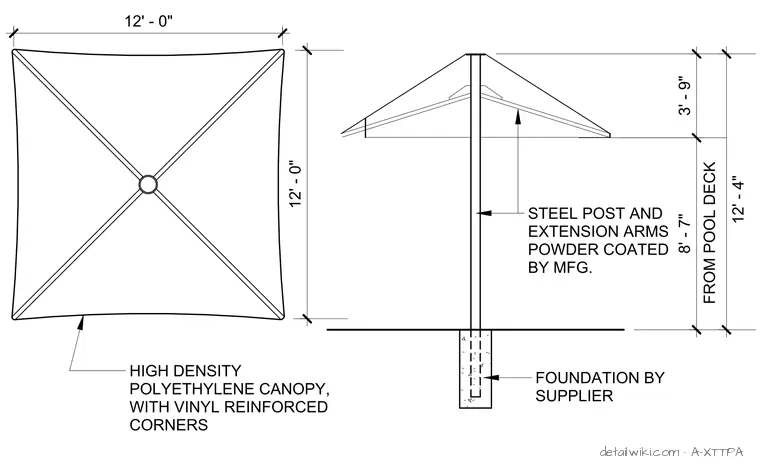

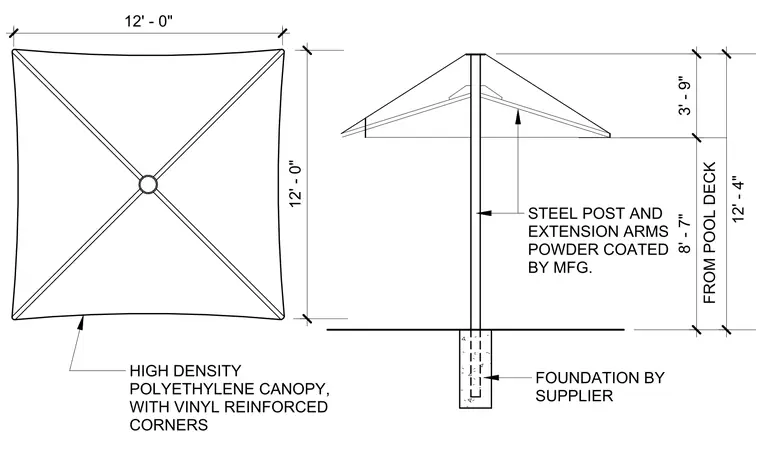

This assembly consists of a twelve-foot square high-density polyethylene canopy with vinyl-reinforced corners supported by a central steel post and extension arms. The steel post and arms are powder-coated by the manufacturer. The post is anchored into a foundation provided by the supplier. The total height of the structure is twelve feet four inches, with the canopy clearance set at eight feet seven inches from the pool deck.
