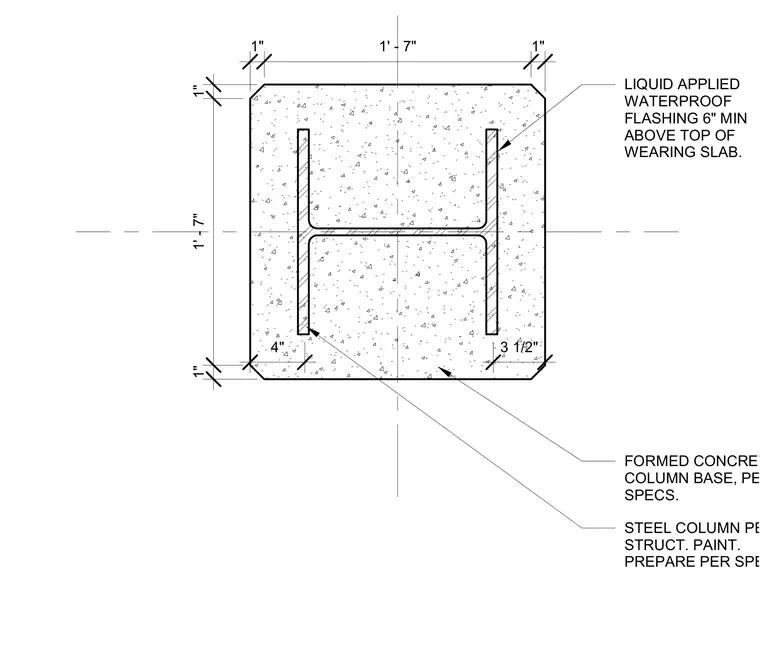

A structural steel column is encased in a three and one-half inch to four inch formed concrete column base as specified. A liquid applied waterproof flashing extends six inches minimum above the top of the wearing slab. The steel column is finished with structural paint prepared per specifications.
1" 1' - 7" 1" 1" 1' - 7" 1" LIQUID APPLIED WATERPROOF FLASHING 6" MIN ABOVE TOP OF WEARING SLAB. 3 1/2" 4" FORMED CONCRETE COLUMN BASE, PER SPECS. STEEL COLUMN PER STRUCT. PAINT. PREPARE PER SPECS.
