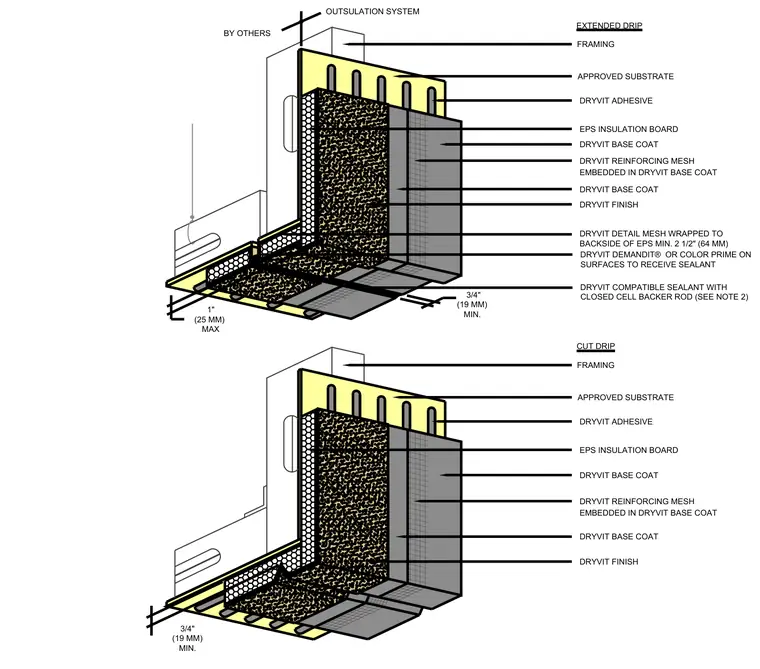

An exterior insulation and finish system soffit and drip edge assembly is anchored over framing and an approved substrate. Dryvit adhesive secures expanded polystyrene insulation board, which is faced with a dryvit base coat and reinforcing mesh. Additional base coat and dryvit finish complete the exterior face. Detail mesh is wrapped to the backside of the expanded polystyrene insulation board with a minimum of two and a half inches. Surfaces receiving sealant are primed with dryvit demandit or color prime, followed by a dryvit compatible sealant and closed-cell backer rod.
FRAMING APPROVED SUBSTRATE DRYVIT REINFORCING MESH EMBEDDED IN DRYVIT BASE COAT DRYVIT BASE COAT EPS INSULATION BOARD DRYVIT FINISH DRYVIT ADHESIVE DRYVIT BASE COAT FRAMING APPROVED SUBSTRATE DRYVIT REINFORCING MESH EMBEDDED IN DRYVIT BASE COAT DRYVIT BASE COAT EPS INSULATION BOARD DRYVIT FINISH DRYVIT ADHESIVE DRYVIT BASE COAT 1" (25 MM) MAX 3/4" (19 MM) MIN. DRYVIT DEMANDIT® OR COLOR PRIME ON SURFACES TO RECEIVE SEALANT DRYVIT DETAIL MESH WRAPPED TO BACKSIDE OF EPS MIN. 2 1/2" (64 MM) 3/4" (19 MM) MIN. DRYVIT COMPATIBLE SEALANT WITH CLOSED CELL BACKER ROD (SEE NOTE 2) EXTENDED DRIP CUT DRIP BY OTHERS OUTSULATION SYSTEM
