This interior partition wall assembly consists of one-and-a-half-inch cold-formed metal stud framing with stud spacing coordinated per the structural drawings. Sound attenuation batt insulation is packed within the framing cavity for acoustic control. The faces are finished with five-eighths-inch gypsum wallboard, with specific wall finishes designated on the interior elevation and finish schedule.

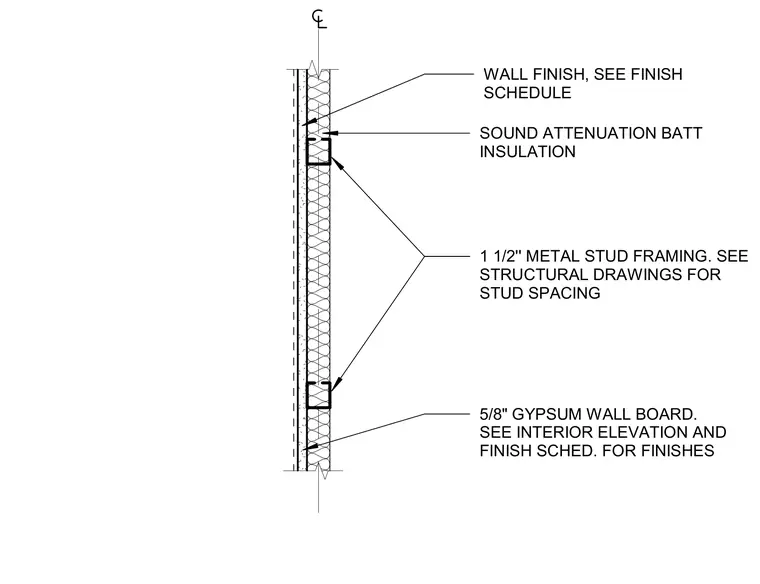

1 1/2'' METAL STUD FRAMING. SEE STRUCTURAL DRAWINGS FOR STUD SPACING SOUND ATTENUATION BATT INSULATION 5/8" GYPSUM WALL BOARD. SEE INTERIOR ELEVATION AND FINISH SCHED. FOR FINISHES WALL FINISH, SEE FINISH SCHEDULE
