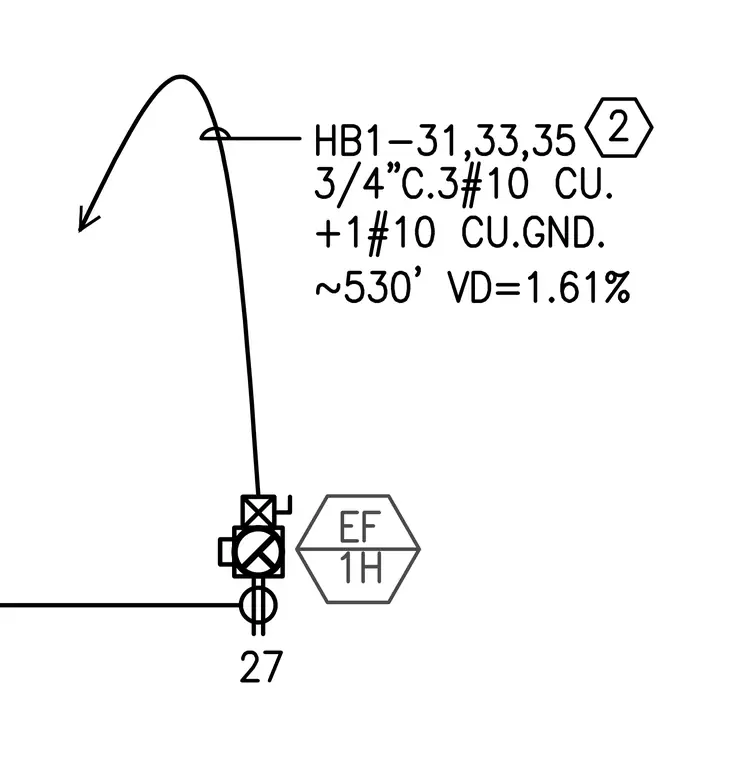

An electrical feed configuration consisting of three number ten copper conductors in a three-quarter-inch conduit with an additional number ten copper ground wire runs approximately five hundred thirty feet with a voltage drop of one point six one percent. The circuit serves connection points HB1-31, 33, 35 referenced to detail 2 and equipment designation EF 1H with device 27.
