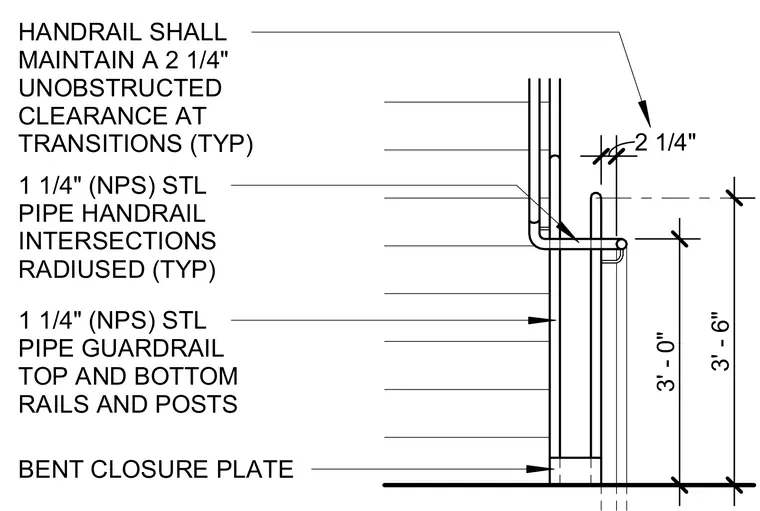

The assembly comprises 1-1/4 inch NPS steel pipe guardrail top and bottom rails and posts, paired with a handrail featuring radiused intersections. A bent closure plate finishes the base at the transition. The handrail maintains a 2-1/4 inch unobstructed clearance at transitions, with a 3-foot height to the handrail and 3-foot 6-inch height to the top rail.
3' - 0" 2 1/4" BENT CLOSURE PLATE HANDRAIL SHALL MAINTAIN A 2 1/4" UNOBSTRUCTED CLEARANCE AT TRANSITIONS (TYP) 1 1/4" (NPS) STL PIPE GUARDRAIL TOP AND BOTTOM RAILS AND POSTS 1 1/4" (NPS) STL PIPE HANDRAIL INTERSECTIONS RADIUSED (TYP) 3' - 6"
