Architectural · A-XT3F6

Gypsum Board Ceiling Suspension Detail at Partition Walls

Materials

Steel Cold-formed Steel Timber / Wood Gypsum / Drywall

Elements

About this detail

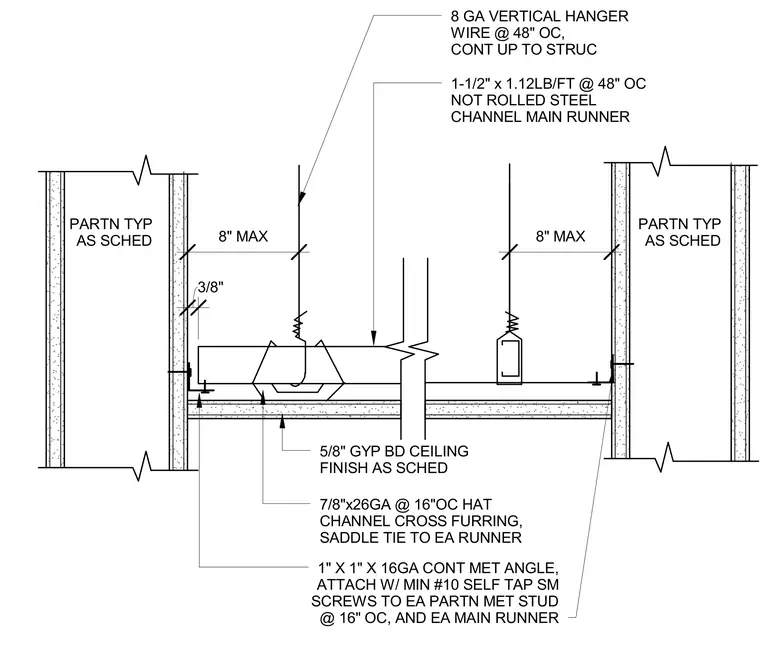

A suspended ceiling assembly consists of five-eighths inch gypsum board finish supported by seven-eighths inch by twenty-six gauge hat channel cross furring spaced at sixteen inches on center and saddle-tied to each main runner. The primary support relies on one-and-one-half inch by one-point-twelve pounds per foot cold-rolled steel channel main runners spaced at forty-eight inches on center, suspended from the structure above by eight-gauge vertical hanger wires at forty-eight inches on center. Perimeter support uses a continuous one-inch by one-inch by sixteen-gauge metal angle attached with minimum number ten self-tapping sheet metal screws to each partition metal stud at sixteen inches on center and to each main runner, maintaining a maximum eight-inch distance from partition walls.
