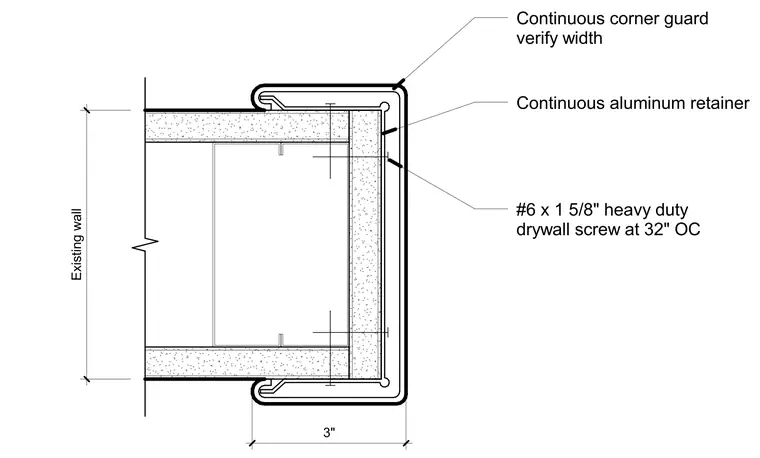

A continuous aluminum retainer fastens to the gypsum wallboard of an existing wall using number 6 by one and five-eighths inch heavy duty drywall screws spaced at thirty-two inches on center. A continuous corner guard snaps over the aluminum retainer to protect the wall corner. The overall profile extends three inches from the wall surface.
Continuous corner guard verify width Continuous aluminum retainer #6 x 1 5/8" heavy duty drywall screw at 32" OC 3" Existing wall
