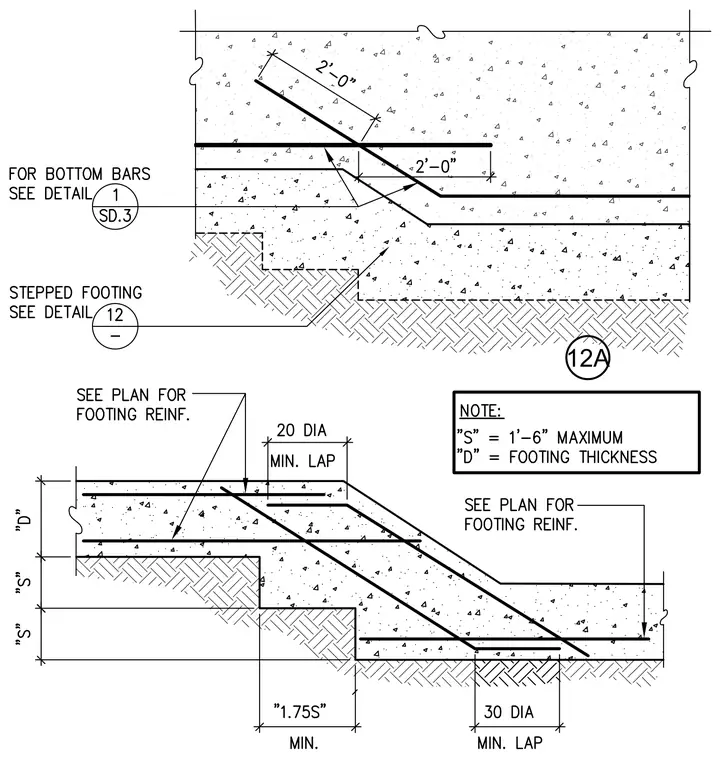

A stepped foundation footing configuration features continuous reinforcing bars transitioning between elevation changes. The longitudinal bars feature specified lap lengths of twenty bar diameters and thirty bar diameters depending on location. Step dimensions are governed by depth variables 'S' set to a maximum of one foot six inches and footing thickness 'D'. Subgrade preparation and footing reinforcement sizing are coordinated per the structural plan.
