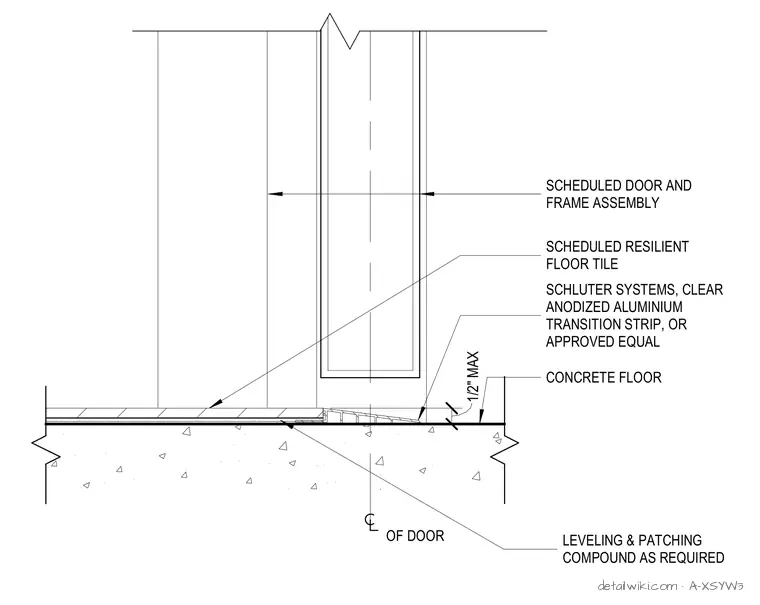

The assembly features a scheduled resilient floor tile installed over a leveling and patching compound as required on a concrete floor slab. A Schluter Systems clear anodized aluminum transition strip provides a smooth edge between the resilient flooring and the adjacent concrete floor at the door threshold. The door and frame assembly is positioned above the transition, maintaining a maximum clearance of one-half inch at the threshold.
Text on the drawing
SCHEDULED DOOR AND FRAME ASSEMBLY SCHEDULED RESILIENT FLOOR TILE LEVELING & PATCHING COMPOUND AS REQUIRED SCHLUTER SYSTEMS, CLEAR ANODIZED ALUMINIUM TRANSITION STRIP, OR APPROVED EQUAL CONCRETE FLOOR 1/2" MAX OF DOOR
