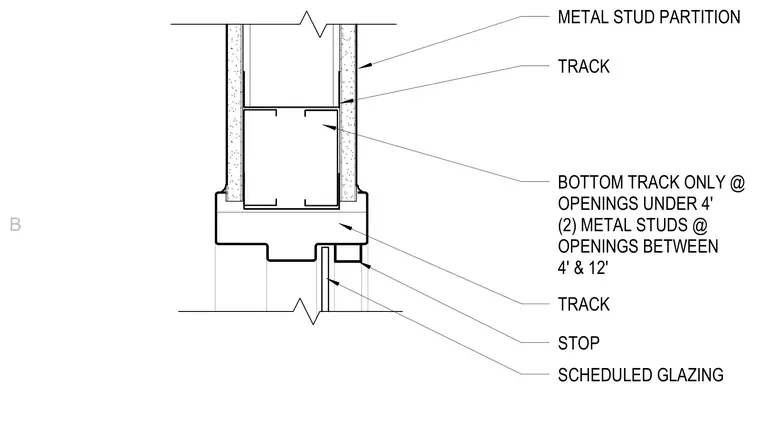

An interior metal stud partition wall meets a track at the head condition above a glazed opening. The assembly features a cold-formed steel track positioned within a metal stud partition, accompanied by a bottom track only at openings under four feet or two metal studs at openings between four and twelve feet. A scheduled glazing stop and glass pane interface directly with the underside of the track assembly.
BOTTOM TRACK ONLY @ OPENINGS UNDER 4' (2) METAL STUDS @ OPENINGS BETWEEN 4' & 12' TRACK METAL STUD PARTITION TRACK SCHEDULED GLAZING STOP B
