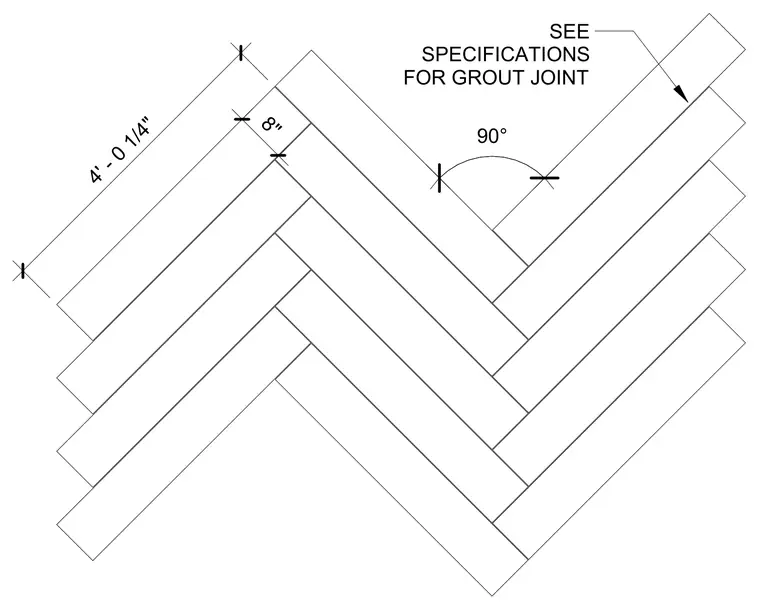

Rectangular tiles are arranged in a herringbone pattern with a ninety-degree angle between intersecting courses. Dimensions indicate an eight-inch unit width alongside an overall layout span of four feet zero and one-quarter inches. Grout joint spacing and installation requirements are directed to project specifications.
