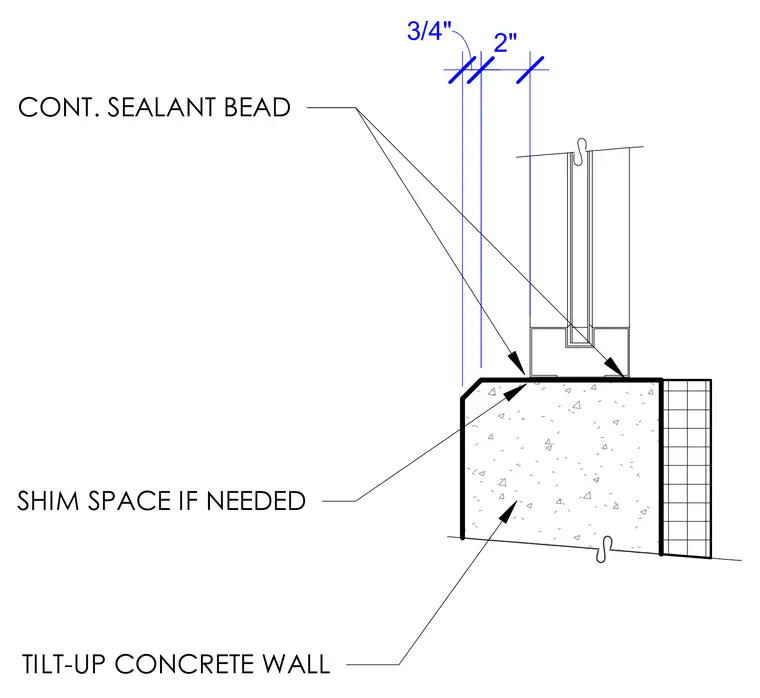

A tilt-up concrete wall panel connects with a shim space provided as needed beneath a framed component. A continuous sealant bead is applied along the joint interface for weatherproofing, maintaining specified dimensional clearances.
SHIM SPACE IF NEEDED TILT-UP CONCRETE WALL CONT. SEALANT BEAD 3/4" 2"
