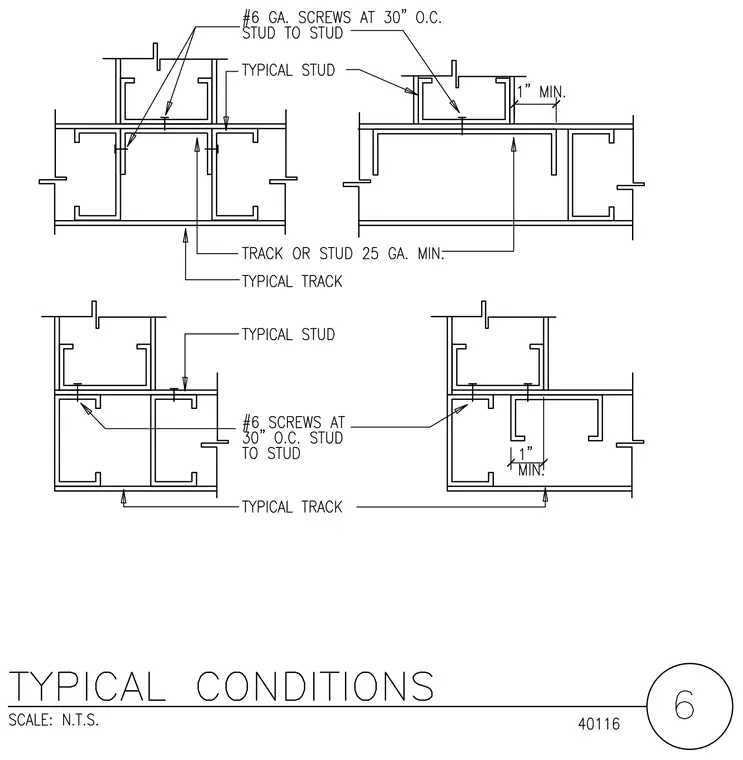

Cold-formed metal stud partitions intersect and form corners using typical steel studs and tracks with a minimum thickness of twenty-five gauge. Connection between framing members is secured using number six screws spaced at thirty inches on center stud to stud. Certain configurations incorporate a one-inch minimum clearance or offset. Typical tracks and studs form the continuous runner and framing elements for the partition junctions.
