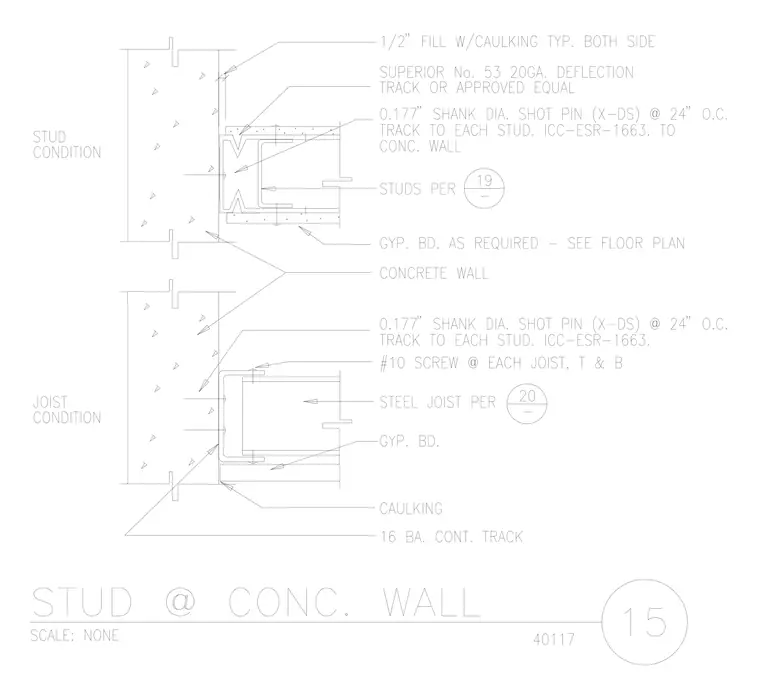

The stud condition features a Superior No. 53 twenty-gauge deflection track fastened to the concrete wall with 0.177-inch shank diameter shot pins spaced at twenty-four inches on center, with the track secured to each stud. A one-half-inch fill with caulking is applied on both sides, and gypsum board is installed as required per the floor plan. The joist condition utilizes a sixteen-gauge continuous track secured to the concrete wall with 0.177-inch shank diameter shot pins, connected to each steel joist using number ten screws at top and bottom, with gypsum board applied around the assembly and joints sealed with caulking.
