Architectural · A-XS2H6

Elevator Sill @ Slab On Grade

Materials

Concrete Reinforced Concrete Steel Metal (misc.)

Elements

Walls Doors Floors / Slabs Foundations / Footings Waterproofing / Flashing Reinforcing

Connections

Bolted Connection

About this detail

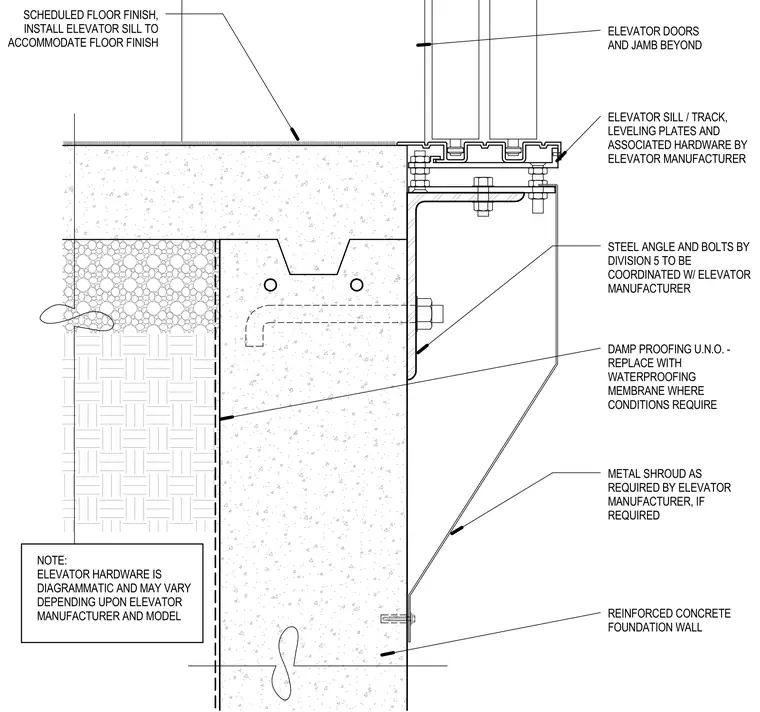

An elevator sill and track assembly bears on a structural steel angle anchored to a reinforced concrete foundation wall and slab on grade. The steel angle is fastened with bolts coordinated with the elevator manufacturer, supporting leveling plates, elevator sill, and track components. A scheduled floor finish meets the elevator sill assembly at the slab edge, accommodating elevator doors and jambs positioned beyond. Damp proofing is applied to the concrete foundation wall unless replaced with a waterproofing membrane where conditions require, with an optional metal shroud installed below as specified by the elevator manufacturer. Elevator hardware is diagrammatic and subject to variation depending upon the specific manufacturer and model.
