Typical Base Cabinet Section

Materials

Elements

About this detail

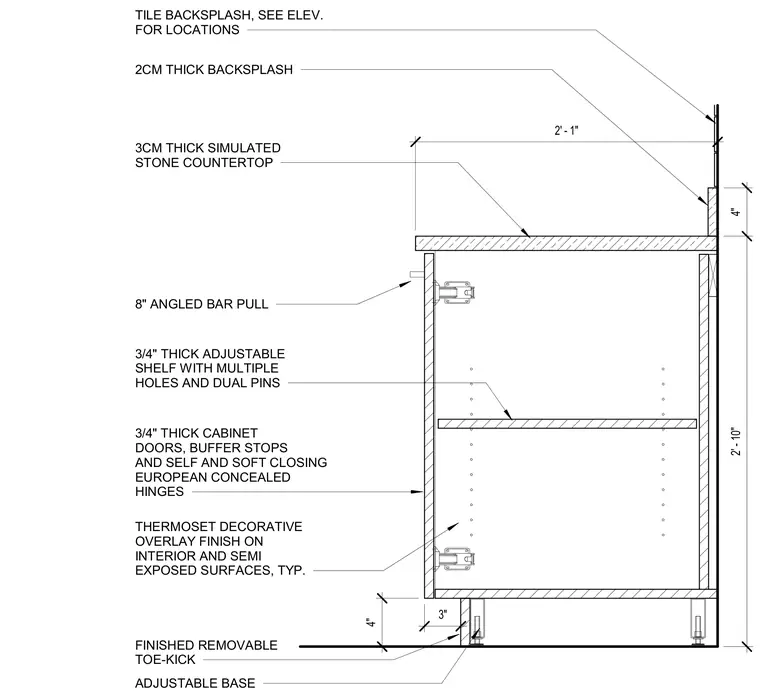

The base cabinet assembly consists of 3/4-inch thick cabinet doors equipped with buffer stops, self- and soft-closing European concealed hinges, and an 8-inch angled bar pull. The interior contains a 3/4-inch thick adjustable shelf supported by multiple holes and dual pins, finished with a thermoset decorative overlay on interior and semi-exposed surfaces. The unit sits on an adjustable base with a 4-inch finished removable toe-kick. A 3cm thick simulated stone countertop tops the cabinet, accompanied by a 2cm thick tile backsplash.
