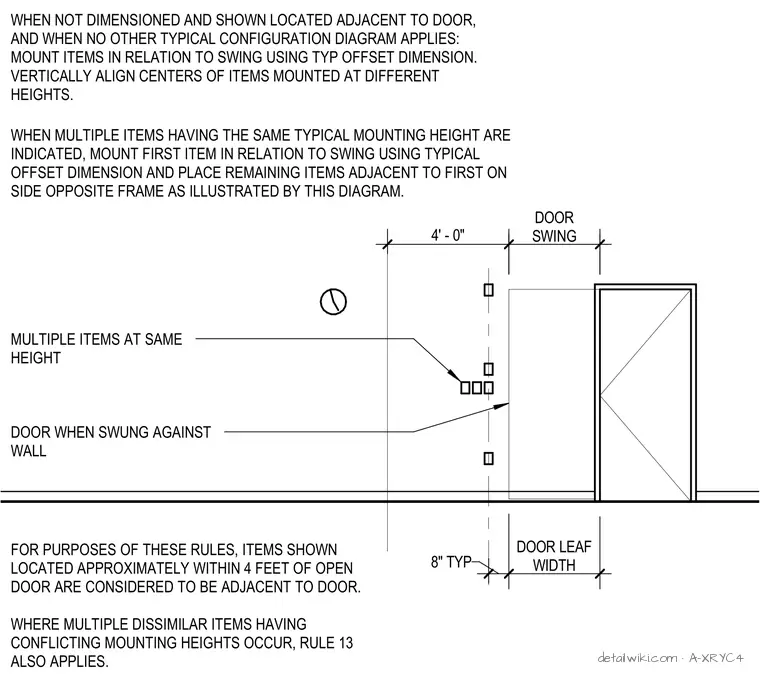

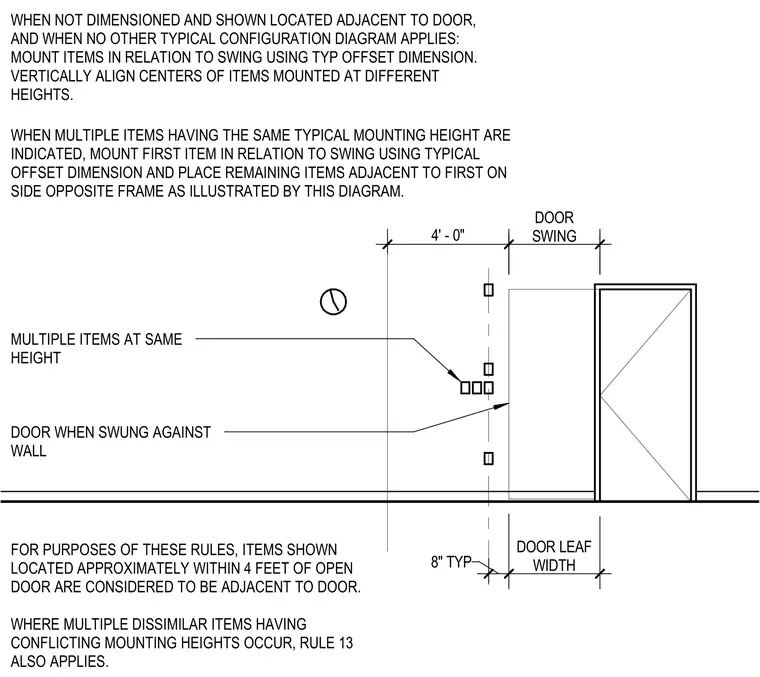

This diagram defines the spatial requirements for mounting wall items adjacent to a door swing. Items located within four feet of an open door are considered adjacent to the door. When no other typical configuration applies, items are mounted in relation to the door swing using a typical eight-inch offset dimension from the door leaf. When multiple items share a mounting height, the first item is placed at the typical offset, with subsequent items placed adjacent to the first on the side opposite the door frame. Items mounted at different heights must have their centers vertically aligned.
Text on the drawing
WHEN NOT DIMENSIONED AND SHOWN LOCATED ADJACENT TO DOOR, AND WHEN NO OTHER TYPICAL CONFIGURATION DIAGRAM APPLIES: MOUNT ITEMS IN RELATION TO SWING USING TYP OFFSET DIMENSION. VERTICALLY ALIGN CENTERS OF ITEMS MOUNTED AT DIFFERENT HEIGHTS. WHEN MULTIPLE ITEMS HAVING THE SAME TYPICAL MOUNTING HEIGHT ARE INDICATED, MOUNT FIRST ITEM IN RELATION TO SWING USING TYPICAL OFFSET DIMENSION AND PLACE REMAINING ITEMS ADJACENT TO FIRST ON SIDE OPPOSITE FRAME AS ILLUSTRATED BY THIS DIAGRAM. MULTIPLE ITEMS AT SAME HEIGHT DOOR WHEN SWUNG AGAINST WALL FOR PURPOSES OF THESE RULES, ITEMS SHOWN LOCATED APPROXIMATELY WITHIN 4 FEET OF OPEN DOOR ARE CONSIDERED TO BE ADJACENT TO DOOR. WHERE MULTIPLE DISSIMILAR ITEMS HAVING CONFLICTING MOUNTING HEIGHTS OCCUR, RULE 13 ALSO APPLIES. NOT DIMENSIONED AND LOCATED ADJACENT TO DOOR AND ON WALL AGAINST WHICH DOOR SWINGS RULE 11 4' - 0" SWING DOOR 8" TYP WIDTH DOOR LEAF
