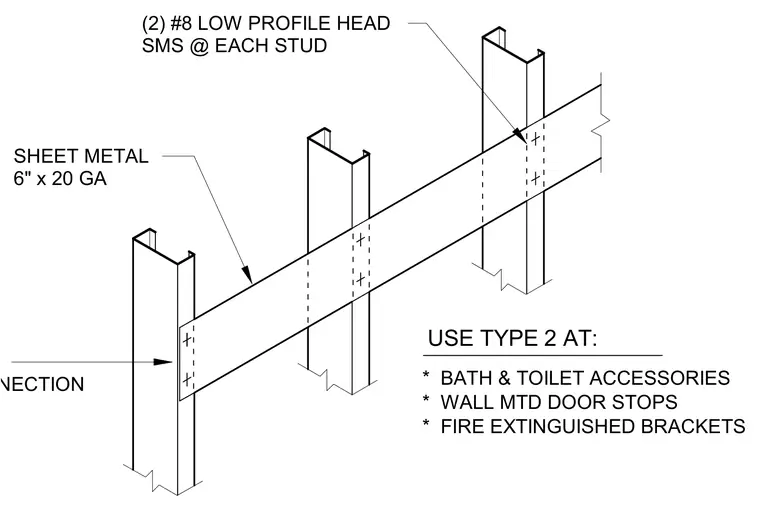

A six-inch wide, twenty-gauge sheet metal backing plate spans horizontally across light-gauge metal studs to provide anchorage for accessories like bath and toilet accessories, wall-mounted door stops, and fire extinguisher brackets. Two number 8 low-profile head sheet metal screws fasten the plate to each stud.
SHEET METAL 6" x 20 GA USE TYPE 2 AT: * BATH & TOILET ACCESSORIES * WALL MTD DOOR STOPS * FIRE EXTINGUISHED BRACKETS CONNECTION (2) #8 LOW PROFILE HEAD SMS @ EACH STUD
