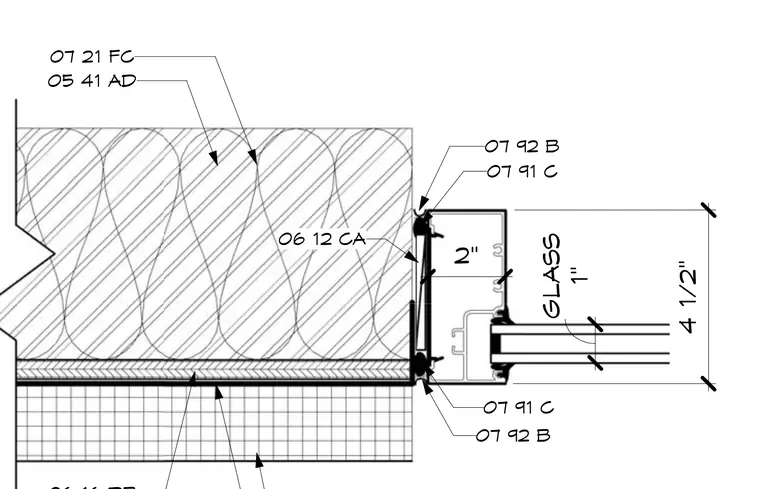

The assembly features a two-inch framing member interfacing with a wall construction that includes insulation, sheathing, and interior finishes. Joint sealants and gaskets provide weather sealing at the metal frame junction. One-inch glass is captured within the framing system, framed by four-and-a-half-inch profile dimensions.
