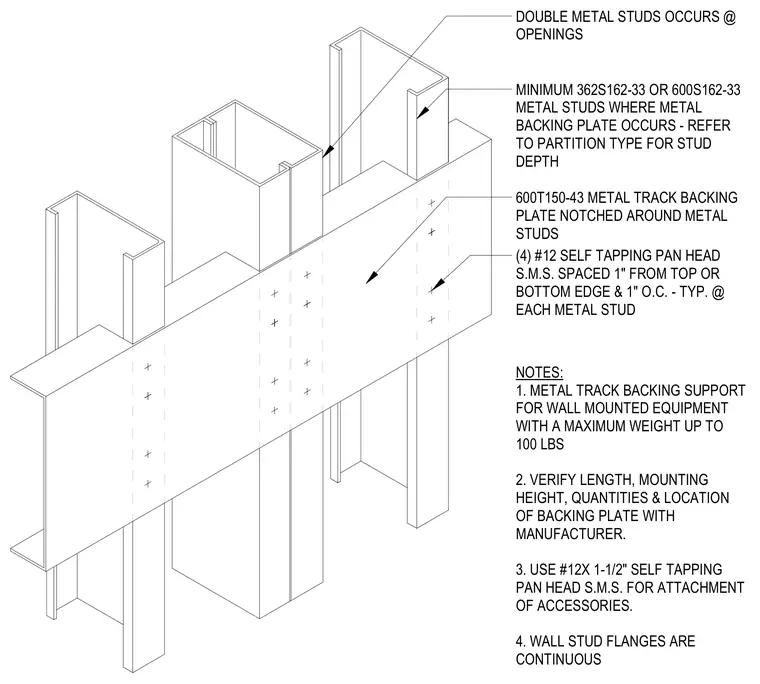

A metal track backing plate attached to cold-formed steel studs provides support for wall-mounted equipment up to one hundred pounds. A 600T150-43 horizontal metal track is notched to fit around vertical metal studs, which consist of minimum 362S162-33 or 600S162-33 members. Four number 12 self-tapping pan head sheet metal screws secure each stud connection, spaced one inch from the top or bottom edge and one inch on center. Double metal studs occur at openings, and wall stud flanges remain continuous.
DOUBLE METAL STUDS OCCURS @ OPENINGS MINIMUM 362S162-33 OR 600S162-33 METAL STUDS WHERE METAL BACKING PLATE OCCURS - REFER TO PARTITION TYPE FOR STUD DEPTH 600T150-43 METAL TRACK BACKING PLATE NOTCHED AROUND METAL STUDS (4) #12 SELF TAPPING PAN HEAD S.M.S. SPACED 1" FROM TOP OR BOTTOM EDGE & 1" O.C. - TYP. @ EACH METAL STUD NOTES: 1. METAL TRACK BACKING SUPPORT FOR WALL MOUNTED EQUIPMENT WITH A MAXIMUM WEIGHT UP TO 100 LBS 2. VERIFY LENGTH, MOUNTING HEIGHT, QUANTITIES & LOCATION OF BACKING PLATE WITH MANUFACTURER. 3. USE #12X 1-1/2" SELF TAPPING PAN HEAD S.M.S. FOR ATTACHMENT OF ACCESSORIES. 4. WALL STUD FLANGES ARE CONTINUOUS
