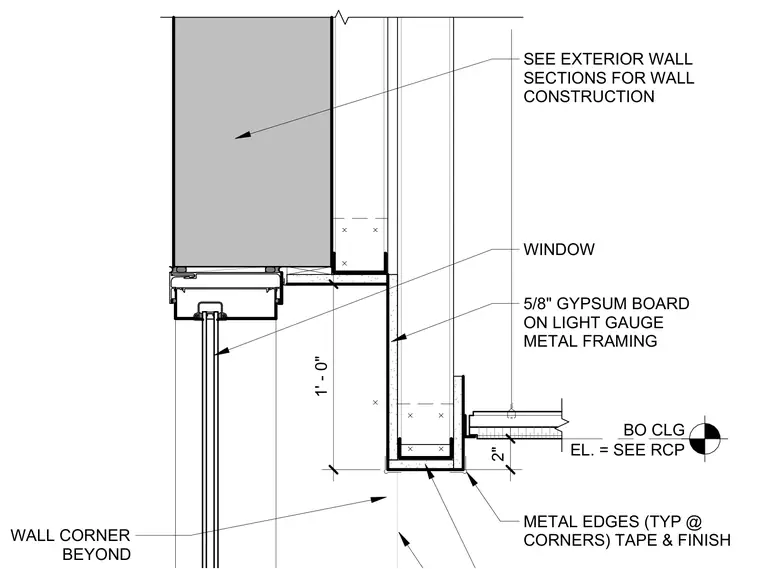

Five-eighths-inch gypsum board is framed on light gauge metal studs forming an interior wall corner that returns to a window jamb. Metal edges are installed at the corners and finished with tape. A one-foot-zero-inch dimension governs the return width, with a two-inch offset at the ceiling condition where bottom of ceiling elevation is per the reflected ceiling plan.
BO CLG EL. = SEE RCP WALL CORNER BEYOND SEE EXTERIOR WALL SECTIONS FOR WALL CONSTRUCTION WINDOW 2" METAL EDGES (TYP @ CORNERS) TAPE & FINISH 1' - 0" 5/8" GYPSUM BOARD ON LIGHT GAUGE METAL FRAMING
