A precast concrete stair tread with a solid metal riser is supported by a channel stringer. A 1 1/2 inch diameter painted metal handrail is positioned at 2 feet 10 inches above the stair nosing, and a guardrail extends 42 inches minimum above the nosing using 1 1/2 inch diameter metal posts and 3/4 inch diameter metal rails. A 1 inch space is maintained between the wall and stringer at all rated walls per plan specifications. Shop drawings are required for review.

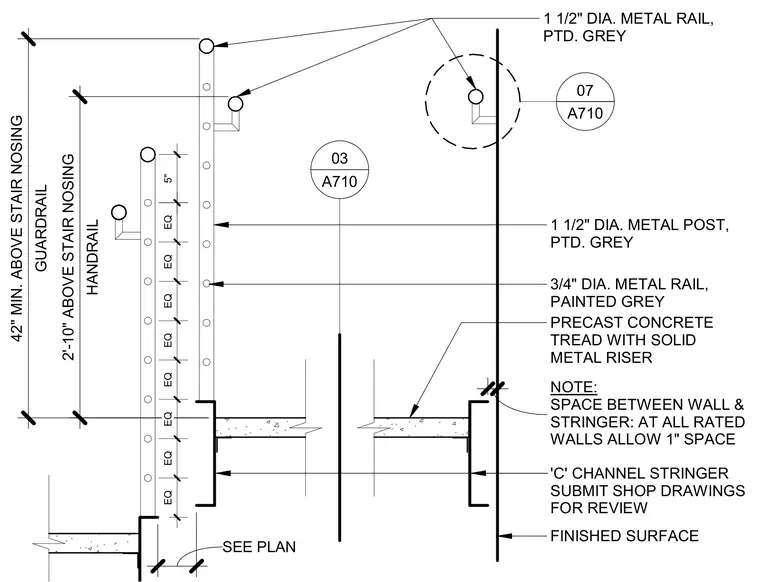

SEE PLAN NOTE: SPACE BETWEEN WALL & STRINGER: AT ALL RATED WALLS ALLOW 1" SPACE FINISHED SURFACE 'C' CHANNEL STRINGER SUBMIT SHOP DRAWINGS FOR REVIEW PRECAST CONCRETE TREAD WITH SOLID METAL RISER 3/4" DIA. METAL RAIL, PAINTED GREY 1 1/2" DIA. METAL POST, PTD. GREY 1 1/2" DIA. METAL RAIL, PTD. GREY GUARDRAIL 42" MIN. ABOVE STAIR NOSING HANDRAIL 2'-10" ABOVE STAIR NOSING EQ EQ EQ EQ EQ EQ EQ EQ 5" 07 A710 03 A710
