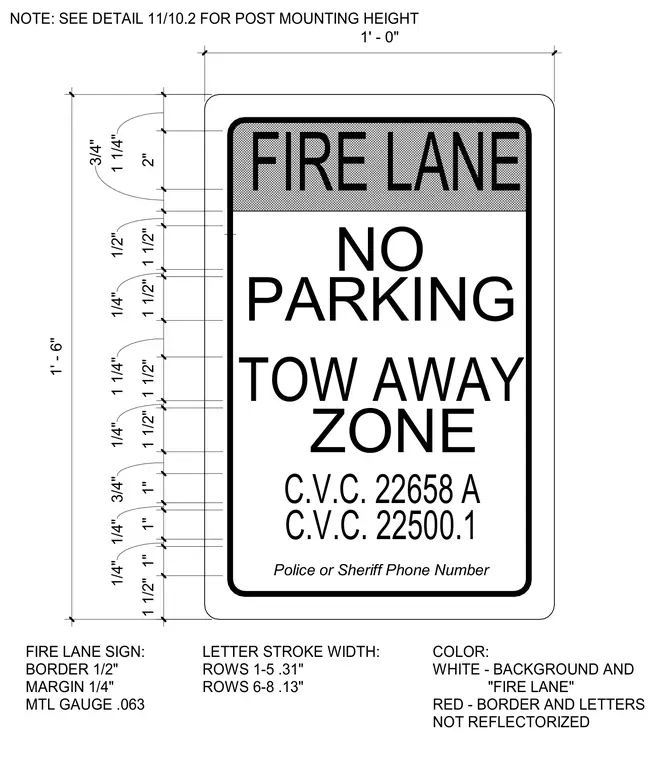

A regulatory fire lane sign measures 1' x 1'-6" with a metal gauge thickness of 0.063". The sign features a white background with a red border and red lettering for the top fire lane text, along with standard black lettering for parking restrictions and vehicle code citations. Letter stroke widths are specified as 0.31" for rows 1 through 5 and 0.13" for rows 6 through 8. The layout includes specific vertical and horizontal dimensional callouts for text margins, borders, and line spacings. A note references another detail for post mounting height requirements.
1' - 0" 1' - 6" FIRE LANE NO TOW AWAY PARKING ZONE C.V.C. 22658 A C.V.C. 22500.1 Police or Sheriff Phone Number 1 1/2" 1" 1/4" 1" 1/4" 1" 3/4" 1 1/2" 1/4" 1 1/2" 1 1/4" 1 1/2" 1/4" 1 1/2" 1/2" 3/4" 2" 1 1/4" FIRE LANE SIGN: BORDER 1/2" MARGIN 1/4" MTL GAUGE .063 LETTER STROKE WIDTH: ROWS 1-5 .31" ROWS 6-8 .13" COLOR: WHITE - BACKGROUND AND "FIRE LANE" RED - BORDER AND LETTERS NOT REFLECTORIZED NOTE: SEE DETAIL 11/10.2 FOR POST MOUNTING HEIGHT
